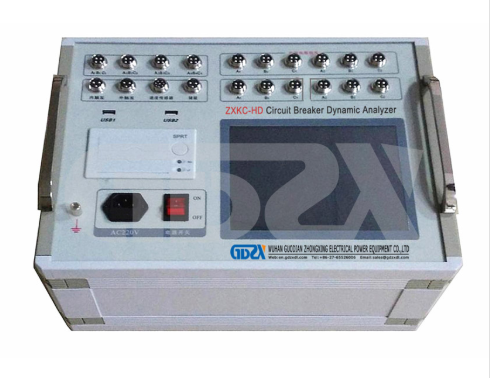

Performance & Application of ZXKC-HD HV Switch Tester
Introduction
High-voltage circuit breakers (HVCBs) are the core switching and protection equipment in power systems, whose dynamic characteristics directly determine the safety and reliability of power grid operation. Parameters such as opening/closing time, velocity, contact stroke, and bounce performance must be strictly verified during factory testing, commissioning, and routine maintenance. The ZXKC-HD High Voltage Switch Dynamic Characteristics Tester is a specialized instrument developed to address these requirements, designed to evaluate the performance of oil, vacuum, and sulfur hexafluoride (SF₆) switches, as well as GIS composite apparatus. This article presents an overview of its key features, technical specifications, and practical applications for field engineers and maintenance personnel.
Core Functional Features
The ZXKC-HD tester is engineered for high adaptability and usability in substation environments, with the following standout capabilities:
User-Centric Operation Platform The instrument adopts an 8.4-inch color LED touchscreen running a Windows operating system, offering a humanized, visualized interface that simplifies operation even in complex field conditions. Integrated with a high-speed thermal printer, it supports on-site test data output for immediate record-keeping and reporting.
Integrated Power Supply System Eliminating the need for an external secondary power supply, the built-in operational power source provides adjustable DC output from 20V to 265V with a maximum current of 20A. This enables low-voltage operation tests of breaker opening/closing coils, simulating real-world power supply conditions.
Versatile Sensor Compatibility The tester is equipped with linear, rotational, and universal sensors, paired with dedicated mounting fixtures for rapid installation. It supports testing of all common switch types (domestic and imported), including SF₆ breakers, GIS equipment, vacuum switches, and oil circuit breakers.
Comprehensive Data Acquisition & Analysis
Single-tap testing captures full data and characteristic curves from one opening/closing operation.
Simultaneous measurement of up to 12 metal contact channels.
Built-in memory stores up to 10,000 test records, with support for external memory cards and USB data export for post-processing and archiving.
Advanced analysis functions include standard envelope curve generation (comparing data from 2–10 instruments) and switch vibration frequency analysis.
High Anti-Interference Capability With internal anti-jamming circuits, the instrument maintains stable performance in 500kV transformer substations, ensuring reliable operation under strong electromagnetic interference.
Key Technical Specifications
The technical indicators of the ZXKC-HD tester meet or exceed industry standards for high-voltage switch testing, as summarized below:
Parameter Category | Specifications |
Time Measurement | Channels: 12 (breakswitch), 6 (fixed separating/graphite/grounding switches)Measurable parameters: fixed opening/closing time, phase asynchronism, bounce time/frequencyRange: 0.01ms ~ 18000ms, resolution: 0.01ms |
Velocity Measurement | Linear sensor: 0.01–25.00m/s (1mm), 0.001–2.50m/s (0.1mm)Angle sensor: 1Cycle / 0.5°Measurable: instantaneous/average velocity in specified time/stroke segments |
Stroke Measurement | Moving contact stroke, contact stroke, overshoot/retrace (overtravel)Sensor options: 50mm linear (0.1mm resolution), 360° rotational (0.5° resolution), 300mm/1000mm linear, acceleration sensor |
Power & Environment | Instrument supply: AC/DC 220V ±10%, 50Hz ±2%DC output: 35–265V continuous adjustment, ≤20A (short-time)Operating temp: -10°C ~ +50°C, relative humidity ≤90% |
Physical Dimensions | 380 × 280 × 170mm |
Practical Applications & Benefits
The ZXKC-HD tester addresses critical pain points in high-voltage switch maintenance and testing:
Factory Acceptance Testing: Validates that new breakers meet design specifications for timing, velocity, and mechanical performance before deployment.
Site Commissioning: Verifies proper installation and adjustment of switches, identifying issues such as misalignment or coil malfunctions.
Preventive Maintenance: Monitors degradation over time, detecting wear in contact systems, spring mechanisms, or operating coils before failures occur.
Failure Analysis: Enables root-cause investigation of breaker malfunctions by comparing test data with baseline performance curves.
Its portability, integrated power supply, and robust anti-interference design make it particularly well-suited for use in remote substations and harsh field environments, reducing downtime and improving maintenance efficiency.
Conclusion
The ZXKC-HD High Voltage Switch Dynamic Characteristics Tester combines high-precision measurement, user-friendly operation, and strong environmental adaptability to meet the full range of testing requirements for modern high-voltage switches. By providing reliable data on mechanical and electrical performance, it plays a vital role in ensuring the safe and stable operation of power systems. For technical personnel, mastering its operation and data analysis capabilities is essential for effective maintenance and management of high-voltage switchgear.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
