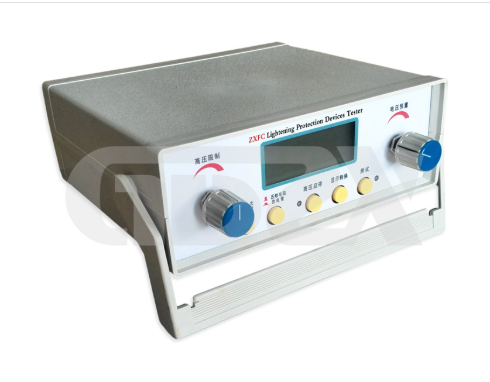

ZXFC Lightning Protection Tester: Verification Tool

1. Introduction

Lightning and switching surges pose significant threats to power system equipment, making the performance of surge protection devices (SPDs) and arresters critical to grid reliability. Accurate testing of these components is essential to ensure they meet operational specifications. The ZXFC Lightning Protection Devices Tester is a specialized instrument designed to address this need, offering comprehensive DC parameter testing for various overvoltage protective components, including oxide zinc arresters (piezoresistors), ceramic 2/3-electrode surge arresters, and vacuum lightning arresters. Beyond its core testing function, the device also serves as a stable power source and constant current supply, enhancing its versatility in laboratory and field applications.

2. Key Functional Features

The ZXFC tester is engineered with user-centric and safety-focused features tailored for technical personnel:

Comprehensive Protection Mechanisms: Equipped with high-voltage (HV) short-circuit protection, over-current protection, HV preset, and range adjustment functions. The HV self-discharge time is less than 0.5 seconds, ensuring rapid discharge and minimizing safety risks.

Self-Calibration Capability: The built-in self-calibration function ensures measurement accuracy without relying on external calibration tools, reducing maintenance overhead.

High-Precision LCD Display: The clear LCD readout delivers real-time, high-accuracy data, supporting reliable analysis of test results.

Range Alarm Function: Users can preset measurement ranges; an audible alarm triggers if readings exceed the set range, preventing equipment damage from out-of-spec conditions.

Continuous Measurement Mode: Ideal for batch testing, this mode allows uninterrupted testing of multiple devices, improving efficiency in production or quality control scenarios.

Simplified Operation and Portability: The panel features intuitive controls for easy operation, while its lightweight design (1.5 kg) and compact dimensions (208mm × 190mm × 78mm) make it suitable for both laboratory and on-site use.

3. Core Technical Specifications

The tester’s performance is defined by precise technical parameters, ensuring compliance with industry standards for SPD testing:

3.1 Pressure-Sensitive Resistance Measurement

表格

3.2 Discharge Measurement

表格

3.3 Environmental and Operational Specifications

Insulation Resistance: 6 MΩ (at 500 V)

Withstand Voltage: AC 1.5 kV, 50 Hz, for 1 minute

Operating Temperature & Humidity: 0 °C to +40 °C, ≤85% RH

Storage Temperature & Humidity: -10 °C to +50 °C, ≤90% RH

Power Supply: AC 220 V, 50 Hz / DC 12 V, 0.5 A

Power Consumption: 8 W

4. Application and Value in Power Systems

The ZXFC tester plays a vital role in ensuring the performance of overvoltage protection components across the power system lifecycle:

Production Quality Control: Enables manufacturers to verify the initial action voltage and leakage current of SPDs during production, ensuring compliance with design specifications.

Field Maintenance: Technicians can use the device to test installed arresters and SPDs, identifying degraded components before they fail during surge events.

Laboratory Research: The tester’s stable power supply and precise measurement capabilities support research and development of new surge protection technologies.

By combining safety features, high precision, and user-friendly design, the ZXFC Lightning Protection Devices Tester addresses the critical need for reliable SPD testing in the power industry, contributing to the overall resilience of electrical grids against lightning and switching surges.
