ZX-A10 Cable Fault Tester Technical Analysis

Abstract

Cable fault location is a core technical link in power grid daily operation and maintenance. Traditional cable fault detection equipment suffers from bulky structure, single sampling frequency, low automation level, complicated field wiring and poor data storage capacity, which severely restricts the efficiency of underground buried cable troubleshooting. This paper takes ZX-A10 integrated cable fault tester as the research object, systematically elaborates its integrated hardware architecture, core functional advantages, complete technical indicators and field application scenarios, and conducts comparative analysis with conventional testing equipment, providing technical reference for power maintenance engineers, railway and airport signal cable inspection technicians to select and operate cable fault locating instruments.

1. Overview of ZX-A10 Cable Fault Tester System Architecture

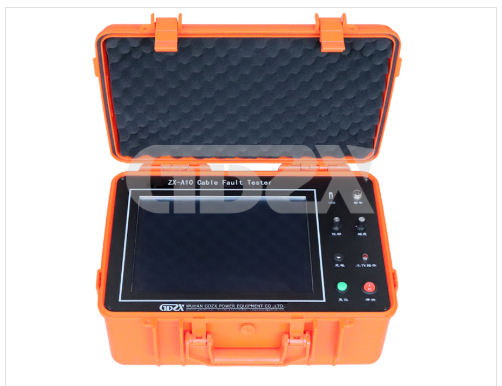

ZX-A10 cable fault locator is a multi-functional integrated testing device complying with Chinese industry standard DL/T849.1 ~ DL/T849.3-2004. The whole equipment is divided into three core modules: main control system, fault distance measuring unit and cable routing depth tester, with industrial embedded computer platform as the core control carrier. It is equipped with independent network communication service module and USB high-speed communication system, which greatly improves equipment data interaction efficiency and multi-scenario utilization rate.

A dedicated built-in storage management system is preloaded for underground buried cables, supporting full lifecycle archiving of cable basic parameters, historical fault waveforms and field wiring diagrams. Its application scope covers power transmission and distribution cable fault detection, cable routing tracing & buried depth measurement, cable data daily archiving maintenance, as well as special signal cable fault locating for railway stations and airport power communication systems, realizing cross-industry universal testing capability.

2. Core Technical Features & Innovative Design

2.1 Industrial Embedded Control & Human-Computer Interaction Innovation

This equipment adopts the domestic pioneering industrial embedded computer platform applied to cable fault detection field, matched with 12.1-inch touch screen and Windows XP operating system, breaking the limitation of single-chip microcomputer control interface of traditional testers. The built-in lithium battery power supply realizes fully independent field operation without external AC power access, greatly improving the mobility of outdoor cable fault emergency repair.

2.2 Multi-frequency Adaptive Sampling & High-precision Distance Measurement

Equipped with standard USB communication interface, the main control unit supports five self-adaptive sampling frequencies ranging from 6.25 MHz to 100 MHz, which can automatically match cables of different lengths and different dielectric materials. The automatic fault point searching function can directly output fault distance data. The dual cursor measurement accuracy reaches 0.15 m, and test waveforms support arbitrary free compression and expansion. The system can simultaneously load two groups of standard reference waveforms randomly for comparative analysis, effectively reducing manual waveform recognition error.

2.3 Large-capacity Local Data Storage Module

The equipment carries a total 40G storage space, which can store massive real-time test waveforms and on-site standard wiring diagrams. Maintenance technicians can call historical test data at any time for comparative analysis of recurring cable faults, forming traceable cable operation archives and realizing digital management of power cable assets.

2.4 Safety-Oriented Modular Sampling & Lightweight High-voltage Unit

A self-developed intelligent modular sampler replaces the complicated temporary field wiring of traditional equipment. The sampling circuit and high-voltage loop are completely electrically isolated, fundamentally eliminating high-voltage electric shock risks for field operators. Matching ZX-35kV high-frequency high-voltage power supply is another key lightweight innovation: the whole unit weighs only 8.9 kg, which replaces the conventional combined set of testing transformer and operation box with a total weight of 65 kg, significantly reducing transportation and carrying pressure for outdoor high-voltage flashover fault testing.

3. Complete Technical Indicators & Testing Capability

3.1 General Testing Performance

Fault type coverage: It can test open circuit, short circuit, low-resistance fault, high-resistance leakage and high-resistance flashover faults of power cables with arbitrary voltage grades, cross-sectional areas and insulating media. It also adapts to signal cable fault detection for rail transit and airport facilities.

Test distance parameters: Maximum measurable cable length ≥40 km; blind zone of short-distance test ranges from 5 m to 10 m; fixed location error ≤±0.2 m, overall testing error controlled within ±1%.

Optional test methods: Low-voltage pulse method, impulse flashover circuit method and flashover voltage method, covering all mainstream cable fault diagnosis technical means in power industry.

Working power supply: Dual power supply design, supporting AC 220V(±10%) mains power and built-in 12V 7AH lithium battery; continuous maximum endurance reaches 4 hours for outdoor field work.

Environmental adaptability: Working ambient temperature from -10 ℃ to +40 ℃, applicable relative humidity ≤85% (at 25 ℃), meeting the operation requirements of most outdoor power construction environments.

3.2 Cable Route Path Analyzer Technical Specifications

The supporting routing depth testing unit adopts 15 kHz sinusoidal signal output, with maximum output power ≥100 W, matching characteristic impedance Zc of tested cables, and discontinuous vibration positioning mode to enhance underground cable signal identification. The host weight of the path analyzer is only 9.8 kg, with overall dimension 180 mm×300 mm×400 mm, featuring compact structure and easy portable operation.

4. Field Application Value in Power Industry

In the daily operation and maintenance of urban power grids, most distribution cables are buried underground, with complex surrounding pipelines and unclear historical laying records, leading to low efficiency of traditional fault location and high labor cost. The ZX-A10 integrated cable fault tester integrates fault distance measurement, routing depth detection and cable data archiving into one machine, solving multiple pain points of separate deployment of multiple single-function testing instruments in the past.

For power maintenance technicians, the self-adaptive multi-frequency sampling, automatic waveform comparison and high-precision cursor measurement reduce the threshold of manual waveform interpretation; the lightweight high-voltage unit and isolated modular sampler greatly improve operation safety and reduce equipment transportation burden. For power grid operation management departments, the 40G large-capacity storage system realizes digital archiving of all cable test data, laying a data foundation for cable full-life cycle health assessment and predictive maintenance.

In addition to conventional power distribution scenarios, the equipment can be extended to auxiliary power signal cable maintenance of railway stations and airports, showing good cross-industry universality and wide popularization prospect.

5. Conclusion

As an integrated new generation cable fault testing device compliant with national power industry standards, ZX-A10 cable fault tester realizes innovative breakthroughs in control platform, man-machine interaction, sampling technology, safety design and lightweight structure compared with traditional single-function testing equipment. Its complete technical indicators, multi-scenario adaptability and digital data management function effectively improve the intelligent and safe level of power cable fault maintenance work.

For front-line power technical personnel, mastering the working principle, parameter matching rules and waveform analysis method of this integrated tester can significantly shorten cable fault troubleshooting time, reduce power outage loss and improve the overall reliability of power supply systems. Subsequent research can further explore the data interconnection scheme between the equipment and power grid digital management platforms, to realize remote uploading and cloud analysis of cable fault test data.
