Technical Review of ZX-A11 Cable Fault Test Set
1. Introduction

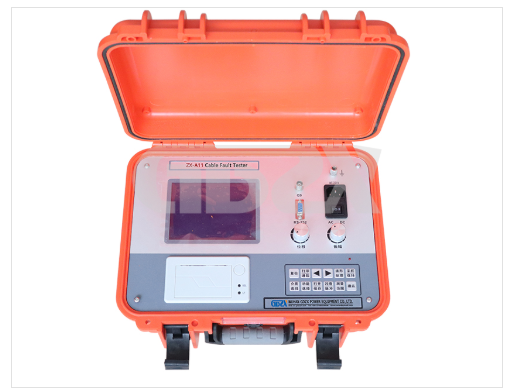

The ZX-A11 Cable Fault Test Set is a field-oriented precision instrument dedicated to cable fault localization. It is compatible with cables of varying cross-sections, dielectric media and conductor materials, including power cables, high-frequency coaxial cables, local distribution cables, street lamp cables and underground wiring systems. The device covers a full range of typical cable fault types: low-resistance faults, short-circuit faults, open-circuit (conductor break) faults, high-resistance leakage faults and flashover faults. With an integrated cable management system and automatic report generation function, it provides a systematic diagnostic solution for front-line power maintenance and technical personnel.
2. Core Functional Features
2.1 Control and Data Management System
The test set is controlled by an industrial laptop via an RS232 communication interface, running on the Windows operating system. It is equipped with a dedicated cable management system, which supports structured storage of cable parameters and test records, and can automatically generate standardized test reports. This design effectively reduces manual documentation work and improves the traceability of test data.
2.2 Sampling and Detection Performance
The instrument adopts a 100MHz high-speed sampling scheme, achieving a minimum distance resolution of 0.5m (based on a signal propagation velocity of 100m/μs), which guarantees fine-grained fault positioning accuracy. Its automatic continuous sampling mechanism ensures full capture of transient discharge waveforms without omission, which is critical for reliable analysis of intermittent flashover and high-resistance fault signals.
2.3 Test and Waveform Analysis Methods
To adapt to faults with different impedance characteristics, the ZX-A11 provides two core test methods:
Flashover test method for high-resistance leakage and flashover faults
Low-voltage pulse sampling method for low-resistance, short-circuit and open-circuit faults
For waveform interpretation, the system is configured with multi-dimensional analysis modes to meet different diagnostic needs:
Single-pulse and multiple-pulse analysis modes
Manual and automatic fault point identification modes
Online expert analysis mode for complex fault scenarios This modular design allows technicians to select matching strategies according to fault characteristics, balancing operation efficiency and diagnostic accuracy.
2.4 Integrated Functions and Portability
Besides fault distance measurement, the device also integrates cable propagation velocity testing function. With its ultra-compact structure and light weight, the ZX-A11 is one of the smallest and lightest cable fault testers in its class, fully adapting to mobile on-site testing and outdoor complex working conditions.
3. Key Technical Indicators
Parameter | Specification |
Pulse amplitude | 100 V peak-to-peak |
Pulse width | 0.1 μs, 2 μs |
Measurement distance range | 15 m (minimum) – 30 km (maximum) |
Rough measurement absolute error | ±10 m |
Rough measurement relative error | ±1 % |
Power supply | USB 3.0 port / standard USB phone charger |
Dimensions (L × W × H) | 210 × 165 × 45 mm |
Net weight | 0.9 kg |
4. Summary
The ZX-A11 Cable Fault Test Set integrates high-resolution sampling, multi-mode fault analysis and excellent portability, with a software system optimized for field operation and data management. It covers most common cable fault scenarios in power distribution and communication networks, and provides technical personnel with a reliable, efficient and easy-to-deploy technical solution for cable fault localization and condition assessment.
