ZX-A30 Intelligent Multi-Pulse Cable Fault Tester Technical Analysis

Abstract

Cable fault location is a core technical link in power grid operation and maintenance. Traditional cable testing equipment suffers from bulky structure, complicated wiring, limited sampling accuracy, single operation mode and poor outdoor adaptability, which restricts the efficiency of on-site fault troubleshooting. This paper systematically introduces the ZX-A30 full intelligent multi-pulse cable fault locator, a networked embedded testing platform. It elaborates its core hardware architecture, integrated multi-technology advantages, key functional features and complete technical indicators, analyzes its technical innovations compared with conventional testing devices, and discusses its practical application value for power, railway, municipal lighting and airport signal cable maintenance, providing technical reference for frontline power test engineers.

1. Overall Platform Architecture & Core Technical Integration

The ZX-A30 Intelligent Cable Fault Test System is built on embedded industrial computer hardware architecture preloaded with Windows XP operating system, equipped with domestically leading integrated cable fault testing software and cable big data management module. The platform organically integrates USB high-speed signal transmission, industrial touch human-machine interaction and 3G/WIFI remote communication technologies, fundamentally optimizing the signal acquisition stability, man-machine operability and remote after-sales technical support capacity of traditional cable fault testers.

In practical field testing scenarios, the multi-technology fusion design solves two prominent pain points of old-fashioned equipment: unstable signal transmission caused by serial port interfaces and delayed offline technical guidance. The built-in 3G communication module and matching Android terminal testing software enable engineers to obtain real-time remote diagnosis, operation guidance and fault analysis from manufacturer’s technical experts anywhere, greatly shortening the troubleshooting cycle of complex cable faults.

2. Key Functional Feature Analysis

2.1 Industrial-Grade Outdoor Hardware Configuration

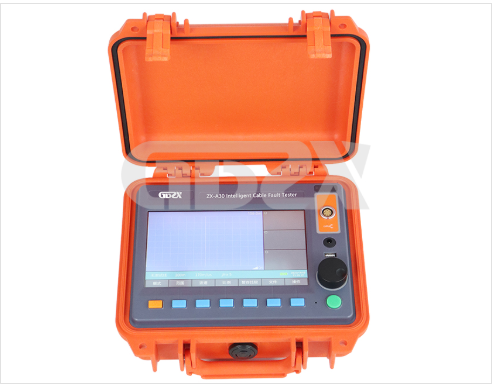

The host adopts a 12.1-inch high-brightness industrial touch LCD screen, supporting touch pen and mouse dual operation modes. The high-luminance display panel maintains clear visualization under strong outdoor sunlight, eliminating the light reflection interference common to small-size portable testers. The whole machine uses shock-resistant plastic chassis, matched with built-in lithium battery power supply to support long-duration field mobile testing. The main unit weighs only 6.2 kg with compact dimension of 180mm×300mm×400mm, while the independent multi-pulse generator is merely 5 kg, realizing lightweight portable design compared with traditional heavy test transformers over 65 kg.

2.2 Multi-Sampling Frequency Adaptive Signal Acquisition System

Equipped with standard USB high-stability signal acquisition interface, the system automatically switches 5 sampling frequencies covering 6.25MHz, 12.5MHz, 25MHz, 50MHz and 100MHz, with self-adaptive adjustable pulse width. For short-distance distribution cables and ultra-long buried transmission cables up to 60km, the device dynamically matches corresponding sampling parameters to minimize rough measurement deviation and lift overall test precision. Dual vernier positioning technology pushes the reading accuracy up to 0.15m, while the overall system test error is controlled within ±1%.

2.3 Integrated Multi-Pulse Test Technology Innovation

The proprietary multi-pulse generator is the core technical highlight of ZX-A30. It integrates low-voltage pulse method, high-voltage flashover impulse method and multi-pulse reflection testing method into one unit. Operators can complete three types of fault diagnosis without repeated cable reconnection wiring. A single high-voltage discharge output generates 10 groups of low-voltage short-circuit pulse waveforms, effectively suppressing oscillatory clutter interference that distorts waveform judgment on conventional single-pulse instruments.

The system automatically identifies fault testing modes and calculates fault distance, displaying waveform data in three independent screen partitions with random real-time waveform rendering of 10 low-voltage pulses. Automatic/manual dual positioning modes are compatible to meet different fault diagnosis demands. Supporting three optional high-voltage discharge modes, the matched integrated 28kg high-voltage surge generator replaces outdated 65kg separate test transformer and operation box, possessing wider test applicability and obvious lightweight advantages, reaching domestic leading technical standard.

2.4 Intelligent Cable Data Management & Automatic Report Output

The 8G built-in storage mass-stores massive test waveforms, cable wiring layouts and historical fault records for cross-comparison and post-failure technical research on site. After finishing fault location, the software automatically generates standardized test reports supporting direct printing output. The full-function cable management system archives complete cable lifecycle data: routing distribution diagrams, cable serial numbers, laying initial coordinates, buried depth, dielectric material, connection nodes, fault occurrence records, failure root causes, full technical test reports and historical test logs, forming digital archives for daily power cable operation and maintenance.

2.5 Precision Secondary Locating with Squelch Noise Suppression Technology

Supporting secondary precise fault pinpointing function, the matching locator directly outputs linear distance data between test terminal and actual fault point. Equipped with proprietary squelch noise suppression technology, an innovative breakthrough among domestic analogous products, it filters on-site electromagnetic noise interference generated by surrounding live lines, enabling rapid, high-precision fault pinpointing. Fast fault localization shortens power outage duration, effectively cutting economic losses from power supply interruption.

3. Complete Technical Performance Indicators

3.1 Test Object Coverage

The tester adapts to all cables with voltage class below 35kV, compatible with cables of different cross-sections, dielectric materials and conductor structures. It diagnoses full-spectrum cable faults: open-circuit, short-circuit, low-resistance fault, high-resistance leakage and high-resistance flashover breakdown faults. Beyond conventional power distribution cables, it fully supports fault detection for railway communication control cables, municipal streetlight cables and airport signal control cables.

The built-in cable routing tracing module measures wave transmission velocity of any known-length cable, and detects buried routing trajectory and buried depth of underground power cables. The routing signal adopts 15kHz sine wave with maximum output power ≥100W; the output impedance matches cable characteristic impedance (Zo=Zc), and the vibration signal operates in non-continuous mode to avoid continuous electromagnetic radiation disturbance.

3.2 Core Precision & Range Parameters

Maximum measurable cable length: ≥60km

Blind detection dead zone: 0–5m (optional zero blind zone configuration)

Fault locating error: ±0.2m

Overall system test error: ≤±1%

Multi-pulse generator maximum impulse voltage: ≤40kV

Waveform resolution: V/ft/m, transmission velocity unit m/μs, software cursor resolution 0.10m

Sampling frequency range: 6.25MHz–100MHz with adaptive pulse width adjustment

3.3 Power Supply & Environmental Adaptability

Input power: AC 220V±10%, power consumption ≤15W; DC 12V(7AH lithium battery), power consumption ≤20W

Continuous standby working time: 6 hours

Operating temperature range: -20℃ ~ +40℃

Maximum relative humidity tolerance: ≤80%

3.2 Physical Parameters

Main control host weight: 6.2kg, dimensions: 180mm×300mm×400mm

Independent multi-pulse generator weight: 5kg

Integrated high voltage surge generator weight: 28kg

4. Application Prospects in Power Industry

Against the background of smart grid construction, urban underground cable networks expand rapidly, and the proportion of buried cables in power transmission and distribution systems rises year by year. Complex laying environments, aging insulation and external construction damage lead to frequent cable hidden faults, putting forward higher requirements for portable, high-precision, multi-scenario cable fault testing equipment.

ZX-A30 solves multiple bottlenecks of traditional testing instruments through embedded industrial control platform, multi-pulse waveform optimization, lightweight high-voltage integration and remote intelligent diagnosis. It can be widely deployed in power supply bureaus, power maintenance companies, railway electrical sections, municipal engineering departments and airport electrical operation teams. Its integrated data management function realizes digitized whole-process cable maintenance, matching the development trend of digital power grid operation and maintenance.

5. Conclusion

The ZX-A30 multi-pulse intelligent cable fault test system realizes technical upgrading from single-function testing instrument to integrated networked test platform via cross-integration of embedded control, multi-frequency signal sampling, multi-pulse waveform technology and wireless remote communication. Its lightweight body, high environmental adaptability, full-type fault coverage and centimeter-level positioning accuracy effectively improve the efficiency of power cable fault troubleshooting. For power test technical personnel, mastering its multi-mode testing principles, adaptive sampling parameter configuration and remote diagnosis operation logic will significantly enhance the capacity of on-site rapid disposal of cable faults, providing reliable technical support for safe and stable operation of power grids.
