Brief Analysis of SMG2000B Field Power Dual-Clamp Phase Meter

Abstract

Phase measurement serves as a core diagnostic means for secondary circuit debugging, transformer wiring identification, differential protection commissioning and energy meter wiring verification in power distribution, substation and relay protection scenarios. Traditional phase measuring instruments suffer from drawbacks such as complicated wiring, limited measuring range, low resolution and poor portability, which severely reduce field testing efficiency. This paper systematically introduces the structural design, core functional advantages and complete technical specifications of the SMG2000B dual-clamp digital phase meter, elaborates its applicable power testing scenarios, and analyzes its measurement accuracy, range coverage and environmental adaptability to provide technical reference for power maintenance, relay protection and electrical test engineers.

1. Product Overview & Core Application Scenarios

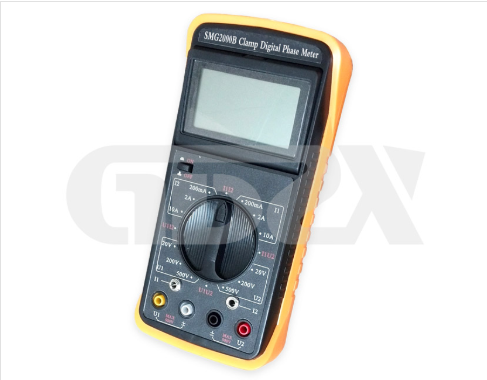

The SMG2000B dual-clamp digital phase meter is a dual-channel handheld measuring instrument specially optimized for on-site power testing of voltage, alternating current and phase parameters. Balancing high measuring precision and low procurement cost, this device solves multiple pain points in conventional power field tests, covering mainstream phase-related inspection tasks of power systems as below:

Phase angle measurement between voltage-voltage (U-U), current-current (I-I), and voltage-current (U-I);

Classification identification of inductive and capacitive load circuits;

Three-phase voltage phase sequence verification;

Transformer connection group judgment;

Secondary circuit and bus differential protection system commissioning;

Phase relation reading among multiple current transformer (CT) groups in differential protection loops;

Wiring correctness inspection of watt-hour energy meters.

Different from fixed bench phase analyzers, the dual-clamp non-contact current sampling design eliminates circuit disconnection operations, making it highly suitable for live-line field inspection of distribution cabinets, switchgears and transformer secondary loops.

2. Key Hardware & Functional Features

The SMG2000B integrates humanized handheld mechanical design and high-precision patented current clamp sensors, with six prominent technical features for power field operation:

Compact Handheld Mechanical Structure Adopting integrated ingenious casing layout, the equipment is lightweight and easy to grip for long-time field operation; the operation logic is simplified to lower the learning threshold for field electrical technicians.

Wide Auto-Range Without Circuit Breaking For phase measurement tasks, the current test range covers 10mA~10A, and voltage test range covers 3V~500V. Engineers can complete full-range sampling without disconnecting target conductors or manually switching measuring ranges, greatly cutting down live test risks and operation time.

High-Contrast Wide-Angle LCD Display Equipped with industrial high-contrast liquid crystal screen; the maximum character height reaches 25mm, and the visible viewing angle extends to 70°. Clear data reading can be realized under strong outdoor sunlight or dim indoor cabinet environments.

Optimized Rotary Function Switch Layout The rotary selector switch adopts reasonable functional partition layout. By simply rotating the knob, users can rapidly switch and read real-time voltage, AC current and phase angle measurement data without complicated multi-key operation.

Ultra-High Measurement Resolution with Patented Clamps The matching new-type patented current clamp sensor delivers outstanding micro-signal capture capability: current resolution reaches 0.1mA, and voltage resolution hits 0.1V. It supports precise measurement of tiny secondary loop leakage current and low-amplitude control voltage signals.

Low Power Consumption with Built-in Battery Monitoring Optimized low-power circuit design extends continuous field working hours; the built-in battery voltage detection function reminds technicians to replace batteries in advance, avoiding sudden shutdown during critical protection commissioning tests.

3. Complete Technical Specifications & Accuracy Index

3.1 Standard Reference Working Conditions

All accuracy indicators are calibrated under unified base testing conditions to ensure measurement repeatability and comparability:

Ambient temperature: 23℃±5℃; Ambient relative humidity: 45%~75%RH

Input signal: 50Hz±0.2Hz sine wave with distortion factor β=0.02

External strong electromagnetic interference shall be avoided during measurement; measured conductors can be placed at optional positions inside clamp jaws

Calibration standard signal amplitude for phase/sequence test: 100~220V voltage, 0.5A~1.5A current Under normal on-site working conditions, the allowable operating error shall not exceed twice the intrinsic error limit of each measuring range.

3.2 Voltage Measurement Parameters

表格

Additional voltage channel parameters: Phase test input impedance >500KΩ; U1-U2 inter-phase measuring loop impedance: 40KΩ.

3.3 AC Current Measurement Parameters

All AC current ranges share the intrinsic error limit of ±(1.0%RD+2):

200mA range: resolution 0.1mA, for micro secondary loop current detection;

2A range: resolution 1mA, for general CT secondary rated current measurement;

10A range: resolution 10mA, for low-voltage live wire load current testing.

3.4 Phase Angle Measurement Parameters

Applicable measurement modes: U-U, U-I, I-I phase difference testing

Measuring range: 0° ~ 360° full circle; Display resolution: 1°; Intrinsic error limit: ±3°

3.5 General Display Configuration

The meter adopts a 3 1/2 digit digital LCD display to present voltage, current and phase angle values synchronously.

4. Application Value in Power Industry

In daily power grid operation and maintenance, relay protection commissioning personnel frequently face multi-scene phase verification tasks. The SMG2000B dual-clamp phase meter solves multiple bottlenecks of traditional single-clamp phase testers:

Non-contact dual-clamp sampling avoids power cut operation, improving live testing safety of distribution networks;

Ultra-wide automatic measuring range adapts to both micro CT secondary signals and low-voltage load large current without repeated range switching;

High resolution and stable phase accuracy guarantee reliable judgment of differential protection CT polarity, transformer vector group and energy meter wiring faults;

Portable low-power handheld design meets all-day outdoor and cabinet-intensive inspection requirements of power test teams.

5. Conclusion

As a dedicated portable phase testing instrument for power secondary systems, the SMG2000B dual-clamp digital phase meter balances portability, measuring range, resolution and testing accuracy. Its patented current clamp sensor, wide auto-range design and humanized operation interface can effectively improve the working efficiency of relay protection debugging, distribution network maintenance and metering verification technicians. For power enterprises seeking cost-effective high-precision on-site phase measuring equipment, this product provides a reliable technical solution for full-scenario secondary circuit phase inspection work.
