Technical Analysis of ZXDN-3B Portable Energy Meter Calibrator

Abstract

On-site verification of electric energy meters and low-voltage metering transformers is a core daily task for power grid operation, metrology inspection and marketing technical teams. Traditional separate calibrators for energy meters and transformer ratio testers bring heavy carrying workload, complicated wiring and low field operation efficiency. The ZXDN-3B intelligent energy meter calibrator integrates energy meter error calibration and low-voltage metering device testing functions into one portable unit, covering full-scenario on-site measurement demands including meter error detection, wrong wiring diagnosis, CT transformation ratio testing, harmonic analysis and multi-function meter data reading. This paper systematically elaborates its functional design, core technical indicators, measurement principles and engineering application advantages, providing technical reference for power metrology technicians.

1. Product Overview

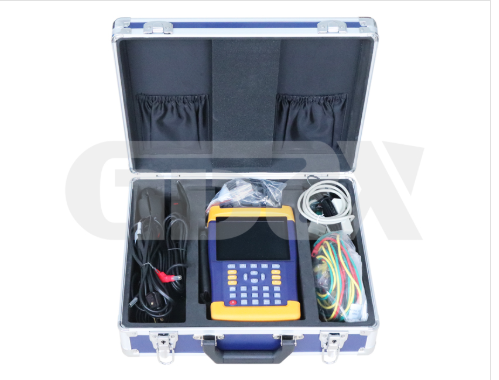

ZXDN-3B is a high-end integrated measuring instrument in the company’s electric energy measurement product line. It breaks the boundary between single energy meter calibrator and low-voltage metering device tester, and realizes multi-dimensional detection of complete low-voltage metering loops. Its core built-in functions cover energy meter error verification, abnormal wiring judgment, current transformer transformation ratio measurement, meter data reading, voltage & current harmonic analysis, waveform capture and clock error calibration.

Different from bench-type calibration equipment limited to laboratory use, this device is designed for field mobile operation, with wide-range adaptive power supply, lightweight body and abundant peripheral expansion interfaces, which fully matches the complex working conditions of power distribution station, residential meter box and industrial user metering point inspection.

2. Core Functional Characteristics

2.1 Human-Machine Interaction & Real-Time Parameter Measurement

The equipment adopts high-brightness, high-resolution TFT color LCD display, which can clearly display all field measured parameters with rich information volume. It supports real-time synchronous measurement of single-phase and three-phase electrical parameters: voltage, current, apparent power, phase angle, active/reactive power factor and grid frequency, realizing one-screen overall monitoring of metering loop operating status.

2.2 Full-Coverage Energy Meter Calibration Capacity

It supports error calibration of meter body and terminal, and can complete inspection of single-phase/three-phase electronic and induction-type active & reactive energy meters. Three pulse input modes are reserved: manual pulse input, photoelectric sampling input and electrical pulse input, adapting to all mainstream energy meter pulse output forms on the market.

For current transformer testing, optional 100A/500A/1000A clamp current sensors are configured to directly measure CT transformation ratio. Technicians can rapidly identify typical hidden faults in CT secondary circuits: open circuit, poor contact, internal inter-turn short circuit, and inconsistency between nameplate rated ratio and actual transformation ratio.

2.3 Harmonic & Waveform Analysis Capability

With built-in high-speed sampling chip, the calibrator can measure the 2nd to 51st harmonic content of single/three-phase voltage and current, and capture real-time waveforms of A/B/C three-phase voltage and current. In modern power grids with a large number of nonlinear loads such as inverters and frequency converters, this function provides effective data support for harmonic loss analysis and metering abnormal fault tracing.

2.4 Powerful Data Storage & Background Software System

Equipped with large-capacity memory card, the device can store more than 10,000 groups of field calibration data of energy meters, and supports U-disk data export. All measurement data can be permanently stored without manual deletion to ensure the traceability of metrological verification records.

The matched background management software can realize seamless docking with power marketing systems, featuring friendly UI, simple operation and convenient version upgrade. Original test data cannot be modified artificially; the software integrates data statistics, multi-condition query and automatic report printing modules, and the report template can be customized according to power enterprise standard requirements.

2.5 Multi-Function Meter Data Reading & Clock Calibration

It can read complete historical records of multi-function electronic energy meters, including cumulative electricity reading, voltage loss event records and real-time clock data. Supporting clock error calibration, broadcast timing and command timing of energy meters (synchronized with the calibrator’s internal standard clock source), it also realizes reading and setting of meter demand register parameters, demand period and demand value error detection.

2.6 Field-Oriented Practical Auxiliary Functions

Small current detection function: convenient for wiring inspection after initial meter installation and no-load line troubleshooting;

Optional barcode & 2D code scanning module: external USB/wireless scanner can quickly read meter asset number and seal number, greatly improving field data entry efficiency;

Self-correction of clamp transformers: after replacing different specification clamp sensors, factory return calibration is unnecessary, which reduces maintenance cost and downtime;

Abundant wireless expansion interfaces: Bluetooth, WIFI and GPS modules are optional, supporting remote data transmission, positioning of verification sites and wireless interaction with mobile terminals.

2.7 Wide-Adaptation Power Supply Design

The working power supply range reaches AC 57V ~ 450V, and three power supply modes are selectable: test line power supply, external adapter power supply and built-in battery power supply, with online charging function available. It can work normally under low-voltage user terminal and high-voltage side PT output voltage conditions, eliminating the trouble of carrying additional power supply equipment.

3. Key Technical Specifications & Accuracy Index

3.1 Measurement Range

Voltage measurement range: AC 40V ~ 440V; working power supply range AC 57.7 ~ 440V, applicable frequency 45 ~ 65Hz;

Current input modes: terminal direct input (1A/5A) and clamp sensor input (5A/20A/100A/500A/1000A/1500A), all ranges support double overload measurement;

Phase measurement range: -180° ~ +180°; measurable harmonic order: 2nd ~ 51st.

3.2 Accuracy Grade

Terminal 1A/5A direct input: accuracy class 0.05;

Self-calibratable 5A & 20A clamp sensors: accuracy class 0.2;

100A/500A/1000A large-current clamps: accuracy class 0.5.

3.3 Basic Measurement Error Limits (Terminal Input)

Harmonic measurement accuracy reaches ±0.01% relative to 100% fundamental wave, meeting the high-precision harmonic detection requirements of power quality assessment. The transformer ratio measurement error is controlled within ±0.5%, voltage influence error and frequency influence error less than ±0.01%, temperature drift less than ±5ppm/℃, and 24-hour clock deviation superior to ±0.01%.

3.4 Environmental & Physical Parameters

Operating temperature for guaranteed accuracy: -20℃ ~ +40℃;

Applicable relative humidity: 40% ~ 95%, non-condensing;

Warm-up time before measurement: less than 3 minutes;

Whole machine power consumption: about 6VA;

Net weight: 1.8kg; overall dimension: 249mm(L) × 154mm(W) × 58mm(H).

The lightweight compact structure is designed for field carrying, effectively reducing the physical burden of technicians during long-distance outdoor inspection.

4. Engineering Application Advantages in Power Industry

Highly integrated equipment reduces the quantity of instruments carried by field teams, simplifies wiring steps and shortens single-point verification time;

Multi-dimensional fault diagnosis functions cover meter error, CT fault, abnormal wiring and power quality harmonic problems, realizing one-time comprehensive inspection of metering loops;

High-precision measurement indexes reach laboratory calibration level, which can meet the metrological verification requirements of power grid legal measurement points;

Complete data closed-loop management from field collection to background statistics ensures the authenticity, integrity and traceability of metering data, complying with power industry metrology supervision specifications;

Rich wireless expansion and automatic identification modules accelerate the digital transformation of on-site metering operation, matching the construction demand of smart grid metering systems.

5. Conclusion

As an integrated portable on-site calibration device, ZXDN-3B intelligent energy meter calibrator solves the pain points of scattered equipment, single measurement function and low operation efficiency in traditional low-voltage metering inspection work. Its high-precision measurement performance, comprehensive function coverage and field-oriented industrial design make it a key technical tool for power metrology, marketing and power quality inspection teams. With the continuous upgrading of smart grid construction, integrated multi-function field calibration instruments will become the mainstream development trend of power measurement equipment, providing solid technical support for accurate measurement, loss reduction and standardized metrology management of power enterprises.
