SMG8000 vs Premium Relay Test Sets: Procurement‑Oriented Differential Protection Vector Analysis

Abstract

As a procurement officer at a power equipment company, selecting the right test instrument for differential protection commissioning and maintenance requires balancing technical capability, total cost of ownership, and field usability. This article examines the SMG8000 Six-Channel Differential Protection Vector Tester and compares it with leading premium relay test sets from OMICRON, Doble, Megger, and ISA. The analysis focuses on specifications, application scope, price positioning, and procurement trade-offs to guide equipment buyers in matching instrument investment with actual service requirements.

1. Introduction: The Procurement Challenge

Differential protection is one of the most critical defense mechanisms for transformers, generators, and busbars. Before a newly installed or refurbished protection scheme can be handed over to operations, engineers must verify that the current transformer (CT) wiring, polarity, ratio, and phase relationships are correct. Traditionally, this verification demanded a full-featured relay test set—an expensive, high-power instrument designed for secondary injection, transient testing, and IEC 61850 digital substation commissioning.

In recent years, compact vector analyzers such as the SMG8000 have entered the market promising to cover the specific task of differential protection vector analysis at a fraction of the cost. For a procurement team, the question is not simply 'Which device has the best specifications?' but rather 'Which device delivers the right specifications for our workload without paying for unused capability?'

2. The SMG8000: Purpose-Built Vector Analysis

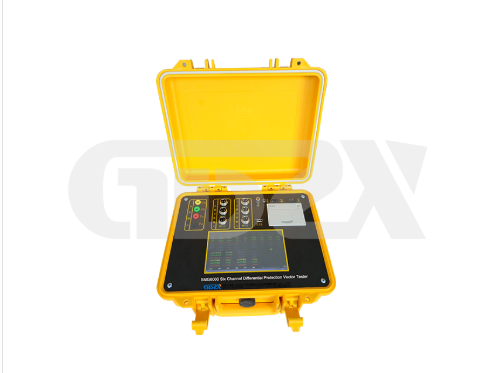

The SMG8000 Six-Channel Differential Protection Vector Tester is a handheld, battery-backed field instrument that simultaneously measures up to three secondary-side AC voltages, three primary-side AC currents, and three secondary-side AC currents. By correlating these quantities, it computes phase angles, power values, power factor, frequency, three-phase unbalance, and a mixed primary/secondary hexagonal vector diagram.

Key hardware highlights include a 24-bit analog-to-digital converter, DSP-based signal processing, an ARM controller, and a TFT touchscreen. The unit supports automatic ranging, mouse-style operation, USB data export, direct Word/Excel report generation without external PC software, and optional micro-printer output. Its stated accuracy is 0.5% of range for voltage, current, and power measurements, with a phase angle accuracy of ±1°. Typical Chinese marketplace listings price the unit between approximately CNY 1,000 and CNY 10,000, depending on configuration and seller.

3. The Premium Alternative: Full-Capability Relay Test Sets

For comparison, four established platforms dominate the high end of protection testing:

OMICRON CMC 356. A six-current, four-voltage universal relay test set and commissioning tool. It delivers up to 6 × 32 A / 430 VA per channel (parallelable to 128 A / 1,000 VA), class-leading amplitude and phase accuracy (typically 0.05% or better), and supports IEC 61850 GOOSE and Sampled Values testing. It is controlled via the Test Universe software suite on a Windows PC or the optional CMControl front panel.

Doble F6150e / F6150sv. A power-system simulator available in multiple configurations. The F6150sv can provide up to 12 high-level analog sources (six voltage, six current) and supports sampled values, GOOSE, GPS-synchronized end-to-end testing, and high-burden electromechanical relay testing. Accuracy is typically ±0.02%, with phase accuracy around ±0.1°.

Megger SMRT Series (SMRT33, SMRT46, SMRT410). Compact, field-portable relay testers with Smart Touch View Interface (STVI) for stand-alone operation or Relay Test Management Software (RTMS) for automated testing. High-current outputs (45–60 A per phase, 300 VA) and IEC 61850 capability make them suitable for utility and industrial maintenance fleets.

ISA DRTS 64 / DRTS 6. Italian-designed multi-phase relay and meter test systems. The DRTS 64 offers six current and four voltage generators, 0.05% accuracy, internal GPS/IRIG-B, IEC 61850 interfaces, and TDMS software for automated test management. The DRTS 6 is a lighter, lower-power variant still capable of 0.05–0.1% accuracy.

4. Head-to-Head Comparison

Table 1 summarizes the most relevant procurement dimensions. Values are taken from manufacturer datasheets and distributor listings; actual delivered performance may vary with firmware, options, and calibration state.

5. Procurement Analysis: Matching Tool to Task

5.1 When the SMG8000 Wins

From a purchasing standpoint, the SMG8000 is attractive when the core requirement is rapid verification of differential protection CT vectors during commissioning or after relay replacement. It removes the need to carry a 20 kg test set, set up a laptop, and license expensive PC software. The built-in battery allows testing inside switchgear rooms where mains power may be inconvenient, and the direct Word/Excel export satisfies typical handover documentation requirements in Chinese utility and industrial projects.

For contractors or maintenance teams that perform dozens of simple vector checks per month, the SMG8000's low capital cost and minimal training curve can deliver a very short payback period. It also serves as a backup instrument that keeps premium test sets available for more demanding relay-characteristic tests.

5.2 When Premium Test Sets Are Necessary

Premium relay test sets remain indispensable for several procurement scenarios. First, when the workload includes electromechanical or high-burden relays, the high VA output of the CMC 356, F6150sv, or DRTS 64 is mandatory. Second, when commissioning IEC 61850 process-bus or station-bus schemes, only the premium platforms offer validated GOOSE and Sampled Values interfaces. Third, when the company requires centralized asset management, automated test libraries, and calibration traceability, the software ecosystems of OMICRON, Doble, Megger, and ISA provide audit trails that a standalone handheld cannot match.

Accuracy is another deciding factor. The SMG8000's 0.5% range error and ±1° phase accuracy are adequate for wiring verification, but they are an order of magnitude coarser than the 0.02–0.05% and ±0.02–0.1° figures common in premium sets. For meter calibration, transformer ratio verification, or dispute-resolution testing, the higher-grade instrument is the lower-risk purchase despite its higher price.

5.3 Total Cost of Ownership

Purchase price is only one line item. Premium instruments require annual calibration, software maintenance contracts, transport cases, accessory cables, and occasional factory repair. The SMG8000's lower initial price reduces financial exposure if the unit is lost or damaged on site, but its calibration support, spare parts availability, and manufacturer warranty should be verified before a fleet purchase. Procurement officers should request calibration certificates, local service-center addresses, and sample spare-part pricing during supplier qualification.

6. Recommendation

The SMG8000 and premium relay test sets are not direct substitutes; they are complementary tools positioned at different points on the capability-cost spectrum. For procurement managers serving transmission and distribution contractors, industrial plants, or distribution network operators, a rational strategy is:

• Purchase one or two premium multi-function relay test sets (e.g., OMICRON CMC 356, Doble F6150sv, or Megger SMRT410) for laboratory calibration, complex relay commissioning, and IEC 61850 projects.

• Equip field crews with the SMG8000 or equivalent compact vector analyzers for routine differential protection vector checks, CT polarity verification, and quick troubleshooting.

This two-tier approach protects capital expenditure: it avoids using a high-end test set for simple wiring checks while ensuring that the organization retains the accuracy, power, and automation required for critical relay acceptance testing. As always, the final purchase decision should be documented against a written technical specification that lists mandatory measurement ranges, required accuracy, software deliverables, and after-sales support expectations.

References

OMICRON Energy. (2026). CMC 356 Universal Relay Test Set and Commissioning Tool [Product datasheet].

Doble Engineering Company. (2026). F6150e / F6150sv Power System Simulator [Product datasheet].

Megger. (2026). SMRT Series Relay Test Systems [Product datasheet].

ISA / Altanova Group. (2023). DRTS Family Specifications, SIE10170 Rev. 28.

GDZX Electrical. (2026). SMG8000 Six Channel Differential Protection Vector Tester [Product page].
