Overview of ZX3030B Three-Phase Standard Power Source

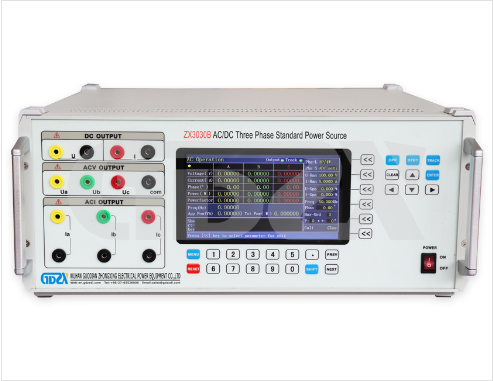

The ZX3030B Three-Phase AC/DC Standard Power Source represents a sophisticated calibration and testing instrument designed for precision measurement applications in power systems. This device integrates advanced ARM+FPGA architecture with high-precision D/A conversion and Direct Digital Synthesis (DDS) technologies, enabling exceptional accuracy in parameter control . Through analog closed-loop feedback and digital PID control algorithms, the instrument maintains remarkable stability in output parameters including voltage, current, frequency, and phase

As a source-meter portable verification device, the ZX3030B serves as an integrated solution for calibrating various electrical instruments. It incorporates high-accuracy parameter standards that ensure reliable tracking of setup data for voltage, current, frequency, phase, power, and energy measurements (optional) . The instrument's technical architecture supports comprehensive testing capabilities for electrical measurement devices, establishing it as a versatile tool in power metrology applications。

Key Technical Features and Specifications

AC Output Characteristics

The ZX3030B provides comprehensive AC output capabilities with voltage ranges from 0-600V across multiple rated ranges (25V, 50V, 100V, 200V, 400V, 600V) and current outputs from 0-24A across rated ranges (0.1A, 0.5A, 1A, 5A, 10A, 20A) . The regulation fineness achieves 5×10⁻⁵ with a wide adjustment range of 0-120% of rated values .

The voltage and current output accuracy is specified at ≤0.03% (reading) ±0.02% (full scale), corresponding to 0.05 class accuracy  Frequency output ranges from 45Hz to 65Hz with 0.001Hz resolution and 0.01Hz accuracy, while phase output covers 0.00° to 359.99° with 0.01° resolution and 0.1° accuracy .

DC Output Capabilities

For DC applications, the instrument offers multiple voltage ranges including 75mV, 1V, 3V, 7.5V, 15V, 30V (with 100mA output capacity) and 75V, 150V, 300V, 600V, 1000V (with 40mA output capacity) . The DC current ranges span from 30μA to 20A with varying output capacities .

The DC output accuracy varies by range, with higher precision (0.05 class) achievable on most ranges (error ≤0.03% reading ±0.02% full scale), while the 75mV range offers 0.1 class accuracy (error ≤0.06% reading ±0.04% full scale) .

Harmonic Generation Capabilities

A distinctive feature of the ZX3030B is its ability to generate distorted waveforms with 2nd to 32nd harmonics . The instrument allows programmable control of harmonic number, order, amplitude, and phase relationship to the fundamental wave . This capability enables testing of electrical instruments under non-ideal operating conditions,simulating real-world power quality scenarios.

The harmonic output specification includes amplitude control from 0-20%, with individual harmonic phase control at a fineness of 0.010°×N (where N is the harmonic order) . This precise control facilitates comprehensive analysis of how harmonic distortions affect measurement devices.

Comparative Analysis: AC vs. DC Power Sources in Calibration Applications

Fundamental Differences in Power Delivery

Understanding the fundamental distinctions between AC and DC power sources is essential for appreciating the ZX3030B's dual-capability design. AC (Alternating Current) power characterizes by periodic direction changes, typically following sinusoidal waveforms at frequencies of 50Hz or 60Hz . This alternating nature enables efficient voltage transformation via transformers, making AC ideal for long-distance transmission and distribution applications .

In contrast, DC (Direct Current) maintains a constant flow direction, providing stable, non-fluctuating power . DC power exhibits higher stability with minimal fluctuations, making it preferable for precision electronic devices, communication equipment, and control systems .

Application-Specific Advantages

The ZX3030B's integrated AC/DC capability addresses distinct calibration requirements:

AC power sources excel in testing devices destined for grid-connected applications, where power factor influences, phase relationships, and frequency responsiveness require evaluation . The ZX3030B's AC output enables testing of energy meters, power meters, and frequency response characteristics under conditions mimicking actual grid operations .

DC power sources provide superior stability for calibrating instruments requiring precise reference values . The ZX3030B's DC output capabilities facilitate calibration of DC meters, panel instruments, and devices used in industrial control systems where DC power predominates .

Technical Implementation Challenges

Combining both AC and DC functionality in a single instrument presents significant engineering challenges. AC power delivery requires careful waveform synthesis to minimize distortion, while DC output demands exceptional stability and minimal ripple . The ZX3030B addresses these challenges through high-power precision operational amplifiers with a frequency bandwidth of 40Hz-1kHz, ensuring good linearity across the operating range .

The instrument incorporates dual output protection mechanisms that ensure high-fidelity output signals with robust overload protection . This combination of features enables the ZX3030B to maintain ≤0.3% distortion for AC outputs and excellent stability for DC outputs (voltage stability ≤0.01% FS/100s, current stability ≤0.02% FS/100s) .

Applications in Electrical Instrument Calibration

Metering Instrument Verification

The ZX3030B facilitates comprehensive testing of various electrical instruments including energy meters (optional), voltage meters, current meters, power meters, frequency meters, power factor meters, and phase meters . The instrument can evaluate basic measurement errors and variations caused by changes in voltage, current, waveform, or power factor .

This capability is particularly valuable for manufacturers and calibration laboratories requiring traceable measurements according to international standards. The instrument's high accuracy (0.05 class for most parameters) establishes it as a reliable reference source for qualifying measurement devices .

Power Quality Testing

With its harmonic generation capability, the ZX3030B enables testing of instruments under power quality disturbances . This functionality allows manufacturers to verify how their devices respond to non-sinusoidal conditions commonly encountered in modern electrical networks with non-linear loads.

The instrument's ability to control harmonic parameters (number, order, amplitude, and phase) facilitates detailed analysis of measurement errors under specific harmonic conditions . This capability aligns with requirements from standards such as IEC 61000-4-7 for harmonic measurement equipment testing.

Operational Considerations and Technical Implementation

Environmental Specifications

The ZX3030B operates within temperature ranges of 20℃±10℃ and relative humidity ≤85% RH . These specifications ensure reliable performance in typical laboratory environments. The instrument requires a single-phase 220V±10%, 50Hz±5% power supply for operation .

With dimensions of 460×480×200mm and weight of approximately 18kg, the instrument maintains a portable form factor despite its comprehensive capabilities . The aluminum alloy chassis provides durability while minimizing weight .

Communication and Control Interfaces

The instrument features RS-232 interface and optional USB connectivity for computer-controlled operation . This enables automated test sequences and integration with calibration management systems. The open communication protocol facilitates secondary development opportunities for custom applications .

PC-based control expands the instrument's functionality, allowing comprehensive testing programs with automated result recording and analysis . This capability enhances efficiency in high-volume calibration environments.

Comparative Perspective with Similar Devices

When compared to specialized instruments like the ZX3030X Three-Phase Harmonic Standard Source, the ZX3030B offers broader functionality with its integrated DC capabilities . While the ZX3030X achieves slightly lower distortion (0.03% typical vs. 0.3% for ZX3030B) for pure AC outputs, it lacks the comprehensive DC functionality .

Similarly, devices like the ZT3030B series offer comparable accuracy (0.05% RG) but may differ in specific implementation details and interface designs . The ZX3030B's combination of AC and DC capabilities in a single portable unit represents a significant advantage for laboratories seeking to consolidate their calibration equipment.

Conclusion

The ZX3030B AC/DC Three-Phase Standard Power Source embodies a versatile calibration solution that addresses the evolving needs of electrical metrology. By integrating both AC and DC functionality with exceptional precision and comprehensive harmonic generation capabilities, the instrument serves as a valuable tool for manufacturers, utilities, and calibration laboratories.

The technical architecture combining ARM+FPGA processing with high-precision D/A conversion and DDS technologies enables accurate parameter control and stability essential for reliable calibration work. As power systems continue to evolve with increasing complexity, instruments like the ZX3030B play a crucial role in ensuring measurement accuracy across diverse applications.

For technical professionals working in electrical instrumentation, understanding the capabilities and proper application of such standard sources is fundamental to maintaining measurement integrity in an increasingly electrified world.
