In the power system, phase verification is a critical technical link in grid connection, ring network operation, and equipment maintenance, which directly relates to the safety and stability of power transmission and the normal operation of electrical equipment. The TAG-8000 Wireless High Voltage Phasing Tester, as a professional device designed for high-voltage phase verification, effectively overcomes the limitations of traditional wired phasing testers and provides a safe, reliable, and efficient solution for live working in the power industry. This article focuses on the technical characteristics, performance indicators, and practical application of the TAG-8000, aiming to provide technical reference for on-site operators and maintenance personnel.

1. Overview of the Instrument

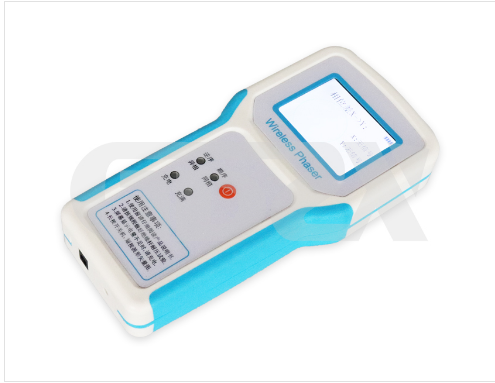

The TAG-8000 Wireless High Voltage Phasing Tester is mainly used for phase verification of two high-voltage lines during grid connection or ring network operation. It supports remote phase verification function upgrade, which significantly improves the flexibility and safety of on-site operation. The instrument is applicable to live working of 6kV ~ 500kV (optional voltage) AC transmission lines and their secondary sides, and is equipped with a high-voltage power inspection function to ensure the safety of operators before operation.

Compared with traditional wired phasing testers, the TAG-8000 adopts advanced wireless transmission technology, which eliminates the trouble of cable connection, avoids potential safety hazards caused by cable wear or insulation damage, and is more convenient to operate in complex on-site environments such as high-altitude or narrow spaces. Its overall design adheres to the safety standards of the power industry, ensuring reliable performance under harsh working conditions.

2. Core Technical Features

The TAG-8000 integrates multiple practical technical features, which are closely combined with the actual needs of power industry live working, effectively improving operation efficiency and measurement accuracy:

1.Wireless Transmission with Long Distance: The maximum visual transmission distance between the launcher and the host is about 100 meters, which allows operators to perform phase verification operations at a safe distance from high-voltage equipment, greatly reducing the risk of electric shock and ensuring personal safety.

2.Voice Prompt Function: The instrument is equipped with a human voice prompt function, which can clearly broadcast operation steps and measurement results in real time. This feature helps operators standardize operations, avoid misoperations caused by unclear operation guidelines, and improve the efficiency of on-site work.

3.Comprehensive Visual Display: A 320×240 color screen is adopted to simultaneously display phase difference, frequency, phase diagram, and in-phase/out-of-phase results. The intuitive display interface enables technical personnel to quickly obtain key measurement data, judge the phase relationship between two lines, and make accurate decisions in a short time.

4.Automatic Shutdown Function: The instrument will automatically shut down if there is no operation for one hour, which effectively saves battery power, extends the service life of the battery, and avoids energy waste caused by forgetting to shut down after operation.

5.Detachable and Replaceable Rechargeable Battery: Both the host and the launcher are equipped with built-in rechargeable lithium batteries, which can be disassembled and replaced. This design solves the problem of inconvenient charging in the field, ensures continuous operation of the instrument, and improves the adaptability of on-site work.

3. Detailed Technical Indicators

The stable and reliable performance of the TAG-8000 is supported by strict technical indicators, which meet the technical requirements of high-voltage phase verification in the power industry. The specific indicators are as follows:

1.Phase Accuracy: ≤5°, which ensures the accuracy of phase difference measurement, meets the precision requirements of grid connection and ring network phase verification, and avoids equipment damage or grid faults caused by phase measurement errors.

2.Frequency Accuracy: ±0.1Hz, which can accurately measure the frequency of the AC transmission line, help technical personnel judge the stable operation state of the power grid, and provide data support for grid regulation.

3.Working Voltage Measuring Range: 6kV - 500kV (optional voltage), which covers most high-voltage transmission line grades in the power industry, and can be flexibly selected according to on-site working needs, with strong versatility.

4.Battery Capacity: The host battery capacity is 2500mAh, and the launcher battery capacity is 350mAh. The large-capacity battery of the host ensures long-time continuous operation, while the detachable design of the launcher battery facilitates on-site replacement and maintenance.

5.High-Voltage Leakage Current: <10uA, which meets the safety standards of high-voltage live working, effectively prevents leakage accidents, and ensures the safety of operators and equipment.

6.Power Consumption: The power of the launcher is <0.1W, and the power of the host is <0.3W. The low power consumption design further extends the battery life and reduces the frequency of charging and battery replacement.

7.Working Environment: It can work stably in the environment of -35℃ ~ +45℃ and humidity ≤95%RH, adapting to the harsh working conditions of outdoor power transmission lines and substations in different regions.

8.Storage Environment: The storage temperature range is -40℃ ~ +55℃, and the humidity is ≤95%RH, which is convenient for the storage and transportation of the instrument, and avoids performance damage caused by harsh storage conditions.

9.Weight: About 5kg, which is light and easy to carry, reducing the labor intensity of operators during on-site transportation and operation.

10.Packaging Size: 71×26×11cm, which is compact in structure, convenient for packaging and transportation, and easy to store in the toolbox.

4. Application in Power Industry

The TAG-8000 Wireless High Voltage Phasing Tester is widely used in various links of the power industry, especially in high-voltage live working scenarios that require high safety and precision, and its main application scenarios include:

1.Grid Connection Phase Verification: When new power plants, substations, or transmission lines are connected to the grid, phase verification is required to ensure that the phase of the new line is consistent with the existing grid. The TAG-8000 can accurately measure the phase difference, avoid grid short circuit or equipment damage caused by phase inconsistency, and ensure the safe and stable grid connection.

2.Ring Network Phase Verification: In the ring network operation of the power grid, the phase consistency of each branch line needs to be verified to ensure the normal operation of the ring network and avoid power supply interruption or equipment failure caused by phase mismatch.

3.High-Voltage Live Maintenance: During the live maintenance of 6kV ~ 500kV AC transmission lines and their secondary sides, the instrument can be used for phase verification and power inspection, ensuring that the maintenance operation is carried out under safe conditions and improving the efficiency of maintenance work.

4.Equipment Debugging and Acceptance: In the debugging and acceptance of new high-voltage equipment (such as transformers, switchgear), the TAG-8000 can verify the phase connection of the equipment, ensure that the equipment is installed correctly, and meet the operation requirements of the power grid.

5. Operation Notes for Technical Personnel

To ensure the safety and accuracy of the operation, technical personnel should pay attention to the following points when using the TAG-8000:

1.Before operation, check the battery status of the host and launcher, ensure that the battery is fully charged or the replaceable battery is available, and avoid operation interruption caused by low battery.

2.Check the wireless transmission function of the instrument, ensure that the communication between the launcher and the host is stable, and avoid measurement errors caused by signal interruption.

3.During live working, operators must wear corresponding insulation protection equipment, keep a safe distance from high-voltage equipment, and strictly abide by the safety operation specifications of high-voltage live working.

4.After the operation, turn off the instrument in time (or rely on the automatic shutdown function), clean the instrument surface, and store it in a dry and ventilated environment to avoid damage to the instrument caused by moisture or dust.

6. Conclusion

As a professional wireless high-voltage phasing tester, the TAG-8000 has the advantages of safe operation, high measurement accuracy, convenient use, and strong environmental adaptability. It effectively solves the problems of inconvenient operation and potential safety hazards of traditional wired phasing testers, and provides a reliable technical tool for phase verification in the power industry. For technical personnel engaged in high-voltage operation and maintenance, mastering the technical characteristics, performance indicators, and operation methods of the TAG-8000 is of great significance for improving work efficiency, ensuring operation safety, and promoting the stable operation of the power grid.
