ZXPD-200T:A Multi-Technology Solution for Power Equipment Insulation Assessment
1. Introduction
Partial discharge (PD) monitoring is a cornerstone of predictive maintenance for high-voltage power equipment, as it provides early warning of insulation degradation that can lead to catastrophic failures. The ZXPD-200T Partial Discharge Detector is a portable, non-invasive diagnostic tool designed to address the growing demand for comprehensive, on-site PD assessment across a wide range of power system assets. This article reviews the technical specifications, core features, and practical applications of the ZXPD-200T, focusing on its utility for electrical engineers and maintenance technicians.
2. Core Measurement Technologies
The ZXPD-200T integrates five complementary PD detection methods, enabling technicians to select the optimal technique based on equipment type and field conditions:
Measurement Mode | Key Specifications | Application Focus |
TEV (Transient Earth Voltage) | Range: 0–60 dBmV; Resolution: 1 dB; Bandwidth: 1–100 MHz | Metal-clad switchgear, ring main units (RMUs) |
UHF (Ultra-High Frequency) | Range: -75 dBm–0 dBm; Bandwidth: 300–1500 MHz; Sensor band: 300–2000 MHz | Gas-insulated switchgear (GIS), high-voltage transformers |
AA (Acoustic Emission) | Range: -6 dBµV–68 dBµV; Resolution: 1 dB; Frequency: 40–200 kHz | Transformers, cables, overhead lines |
AA (Audible Acoustic) | Range: -6 dBµV–68 dBµV; Resolution: 1 dB; Center frequency: 40 kHz | Surface discharges, mechanical faults |
HFCT (High-Frequency Current Transformer) | Transducer impedance: 5 mV/mA; Bandwidth: 1–30 MHz; Sensitivity: ≤50 pC | Cable systems, transformer bushings |
This multi-modal approach ensures that the ZXPD-200T can detect PD signals across the full frequency spectrum (30 kHz–2.0 GHz), making it suitable for nearly all classes of high-voltage electrical equipment.
3. Key Functional Features
3.1 Simultaneous Multi-Sensor Data Interpretation
The ZXPD-200T can simultaneously process PD signals from multiple sensors, allowing technicians to correlate data from TEV, UHF, acoustic, and HFCT measurements. This cross-validation improves diagnostic accuracy and reduces false positives, a critical advantage in complex substation environments.
3.2 Advanced Diagnostic Visualization
The instrument provides a suite of analytical tools to characterize discharge behavior:
A.Time-domain waveform: Visualizes the shape and magnitude of individual PD pulses.
B.PRPD (Phase-Resolved Partial Discharge): Maps discharge activity relative to the AC voltage phase, enabling classification of discharge types (e.g., corona, surface, internal voids).
C.PRPS (Phase-Resolved Pulse Sequence): Tracks the temporal sequence of PD events, aiding in the assessment of discharge severity and progression.
3.3 Intuitive Data Management & 360° Diagnosis
The human-machine interface (HMI) simplifies data organization and analysis, supporting:
A.istorical data trending to monitor insulation condition over time.
B.Horizontal (cross-equipment) and vertical (multi-measurement) data comparison.
C.Comprehensive 360° diagnostic reporting, which integrates all measurement modes to deliver a holistic assessment of equipment health.
3.4 Non-Invasive, On-Site Testing
A defining advantage of the ZXPD-200T is its non-invasive detection methodology, which eliminates the need to de-energize equipment or apply external high-voltage sources. This reduces downtime and enhances operational safety, making it ideal for live-line testing in power substations and industrial facilities.

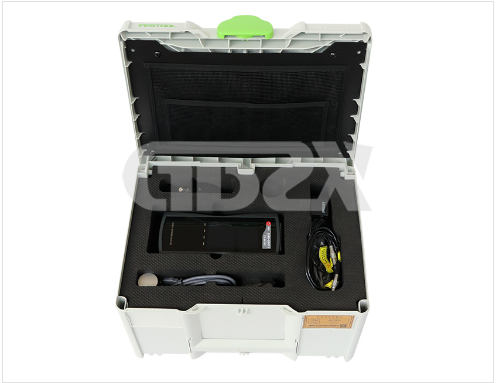

4. Hardware Specifications
The ZXPD-200T is engineered for field durability and operational convenience:
A.Processing: ARM-based controller for reliable real-time data processing.
B.Display: 5.0-inch RGB LCD for clear visualization of waveforms and diagnostic plots.
C.Connectivity: USB (with charging), wireless Wi-Fi, and wireless synchronization for data transfer and remote monitoring.
D.Power: 3.7V/1Ah lithium battery, providing up to 8 hours of continuous operation, with universal charging (AC 90–264V or DC 5V).
E.Environmental Rating: Operates at -20–50°C and 20–85% RH, with a lightweight (0.4 kg) ABS shell for portability.
5. Practical Applications
The ZXPD-200T is widely deployed in the power industry for:
A.Insulation condition assessment: High-voltage switchgear, RMUs, transformers (including dry-type), GIS, overhead lines, and power cables.
B.Predictive maintenance programs: Early detection of insulation defects to prevent unplanned outages.
C.Commissioning testing: Verification of new equipment installation quality.
D.Troubleshooting: Identification and localization of PD sources in faulty equipment.
6. Conclusion
The ZXPD-200T Partial Discharge Detector represents a state-of-the-art solution for modern power system diagnostics. By integrating multiple PD measurement technologies, advanced analytical tools, and a user-friendly design, it empowers technical personnel to perform accurate, non-invasive, and comprehensive insulation assessments. Its versatility and reliability make it an indispensable tool for maintaining the integrity and reliability of high-voltage power equipment.
