XZ-2: A Reliable Tool for Power System Phase Sequence Verification
Abstract
Correct phase sequence of three-phase power systems is a core prerequisite for the safe and stable operation of power equipment, from low-voltage distribution motors to high-voltage transmission and transformation systems. Phase sequence errors can lead to severe consequences such as motor reverse rotation, equipment insulation damage, and relay protection maloperation. This paper introduces the XZ-2 High Voltage Phase Sequence Indicator, a portable, high-adaptability testing instrument designed for power industry technicians. It details the product’s working principle, core features, technical specifications, field application specifications, and its value in power system installation, commissioning, and operation and maintenance (O&M) scenarios.
1. Product Overview

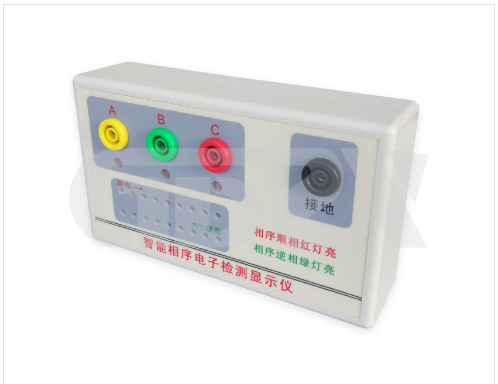

The XZ-2 High Voltage Phase Sequence Indicator is a specialized portable instrument for phase sequence verification of three-phase power sources. It is engineered to meet the on-site testing needs of power industry technicians, with a native test voltage range covering 50V-500V low-voltage systems and 6kV and above high-voltage systems. Its core function is to verify whether the phase sequence of the three-phase power supply follows the standard A-B-C positive sequence. With a compact size and simple operation logic, the instrument can adapt to complex on-site working conditions in power systems, providing an efficient and intuitive solution for phase sequence confirmation.
2. Core Features and Working Logic
The design of the XZ-2 indicator fully considers the actual needs of power field operations, with core functions optimized for technician usage scenarios:
2.1 Intuitive and High-Visibility Phase Sequence Indication
The instrument adopts a dynamic dual-color light indication scheme for clear and error-resistant phase sequence judgment: a red moving lamp indicates a positive (A-B-C) phase sequence, while a green moving lamp indicates a negative phase sequence. This design eliminates the need for complex numerical reading and calculation, allowing technicians to quickly and accurately identify phase sequence status even in noisy, low-light, or complex on-site environments, effectively reducing the risk of human misjudgment.
2.2 Wide Voltage Grade Adaptability
Unlike traditional phase sequence testers that are limited to a single voltage range, the XZ-2 indicator has a dual-scenario adaptive design. It can be directly used for phase sequence testing of 380V low-voltage power distribution systems. When matched with a dedicated insulation rod of the corresponding voltage grade, it can be extended to phase sequence verification of 6kV and above high-voltage systems. This design solves the pain point of needing to replace multiple instruments for high and low voltage testing in power field operations, greatly improving the flexibility of on-site work.
2.3 Intelligent Auto Power Control
The instrument is equipped with an auto power switch on/off function, which eliminates the need for manual power operation during on-site work. This design not only simplifies the operation steps for technicians, but also effectively avoids unnecessary battery power loss caused by forgetting to turn off the power, extends the standby time of the instrument, and reduces the maintenance cost of on-site equipment.
3. Detailed Technical Specifications
The technical parameters of the XZ-2 indicator fully comply with the safety and accuracy requirements of the power industry, and the core specifications are as follows:
3.1 Main Unit Parameters
Parameter | Specification |
Standard Input Voltage Range | 50V-500V (low voltage section), 6-10kV (high voltage section) |
Customization Support | Voltage grades above 35kV can be customized |
Power Supply | 9V dry battery |
Main Unit Dimensions | 125mm (Length) × 65mm (Width) × 60mm (Height) |
Main Unit Weight | 0.3KG |
Protective Alloy Box Dimensions | 225mm (Length) × 105mm (Width) × 115mm (Height) |
Alloy Box Weight | 0.3KG |
3.2 Matching Insulation Rod Technical Parameters
The dedicated insulation rod is designed in strict accordance with high-voltage operation safety standards, with damping resistance configured to ensure the safety of operators during high-voltage testing. The parameters of insulation rods for different rated voltage grades are shown in the table below:
Rated Voltage (kV) | Attenuation Part Length (M) | Attenuation Part Resistance (MΩ) | Handheld Part Length (M) | Total Length (M) | Stowed Length (M) | Section Number |
6-10 | 0.35 | 36 | 0.55 | 2 | 0.6 | 4 |
35 | 0.35 | 100 | 0.55 | 2.5 | 0.6 | 5 |
110 | 0.9 | 300 | 0.6 | 2.9 | 1.1 | 3 |
220 | 1.2 | 450 | 0.7 | 3.8 | 1.1 | 4 |
500 | 2 | 1100 | 0.8 | 5 | 1.1 | 5 |
For 6-10kV and above high-voltage applications, the standard configuration includes 3 sets of 2-meter insulation rods with 36MΩ damping resistance, which can meet the conventional high-voltage phase sequence testing needs of power distribution systems.
4. Field Application Scenarios and Standardized Operation Guidelines
The XZ-2 indicator is widely used in the whole life cycle of power system construction and operation, and standardized operation is the key to ensuring testing accuracy and personal safety.
4.1 Main Application Scenarios
Phase sequence verification of 380V low-voltage distribution systems, including motor incoming lines, power distribution cabinets, and transformer outlet ends;
Phase sequence check of 6kV-500kV high-voltage transmission and distribution systems, including busbars, transmission lines, and voltage transformers;
Pre-commissioning debugging of new substations, power distribution rooms, and industrial power supply systems;
Phase sequence recheck after maintenance of power equipment, to avoid equipment failure caused by phase sequence wiring errors.
4.2 Key Operation Specifications for Technicians
Low-voltage testing (50V-500V): Directly connect the test leads of the main unit to the three-phase tested circuit, and judge the phase sequence status through the color of the dynamic indicator lamp.
High-voltage testing (6kV and above): Must be equipped with an insulation rod matching the tested voltage grade. Before operation, strictly check that the insulation rod is intact, free of damage and moisture. Operators must wear personal safety protective equipment that meets the specifications (insulating gloves, insulating shoes, etc.), and fully follow the safety operation procedures for high-voltage work in the power industry.
Daily maintenance: Confirm that the battery power is sufficient before use; the instrument will automatically turn off after use. For long-term storage, the battery should be taken out to prevent liquid leakage from damaging the internal circuit of the instrument.
5. Conclusion
The XZ-2 High Voltage Phase Sequence Indicator is a high-reliability, high-adaptability professional testing instrument tailored for power industry technicians. Its dual-range voltage adaptation, intuitive phase sequence indication, portable lightweight design, and intelligent power control fully meet the needs of phase sequence verification from low-voltage distribution to high-voltage transmission systems.
