SMG3000 Three-Phase Power Analyzer: Technical Overview and Field Applications

1. Introduction

In modern power distribution systems, accurate measurement and analysis of three-phase electrical parameters are fundamental to ensuring system stability, energy efficiency, and equipment safety. Field engineers and maintenance technicians require portable, multi-functional instrumentation capable of performing comprehensive power quality assessments without disrupting operational continuity. The SMG3000 Three-Phase Meter is designed specifically for this purpose — integrating voltage, current, phase, frequency, and power measurement capabilities into a single handheld device.

This paper provides a technical analysis of the SMG3000, examining its measurement principles, core functional architecture, and performance specifications to assist technical personnel in evaluating its suitability for field deployment.

2. Instrument Overview

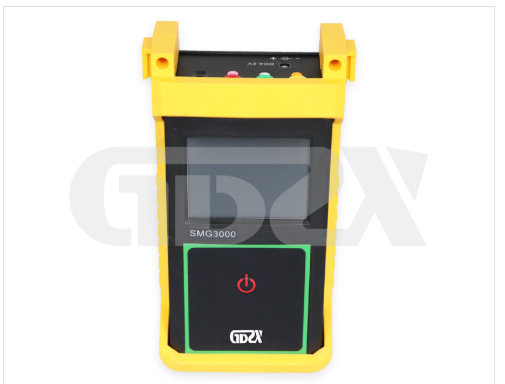

The SMG3000 is a class of portable three-phase power parameter measuring instrument. Its primary function is to acquire and process three-phase electrical quantities simultaneously, including phase-to-phase voltage, phase-to-neutral voltage, line current (including neutral line current), phase angle, system frequency, active power, reactive power, apparent power, and power factor.

Equipped with a TFT color display with finger-touch operation and a rechargeable lithium battery providing over 20 hours of continuous standby, the instrument is engineered for on-site power system diagnostics, transformer wiring verification, phase sequence detection, and energy metering calibration.

3. Core Measurement Capabilities

3.1 Voltage and Current Acquisition

The SMG3000 supports three-phase voltage measurement across a 1–600 Vac range with a resolution of 0.01 V and an accuracy of 0.5% of the measuring range. For current measurement, it provides four channels — covering three phase currents plus neutral line current — with a range of 0.001–20 Aac at 0.001 A resolution. This four-channel current architecture is particularly valuable for detecting neutral current imbalance in three-phase four-wire systems, a common indicator of load asymmetry and harmonic distortion.

3.2 Phase Angle and Phase Sequence Analysis

Phase angle measurement spans 0–360° with ±2° basic accuracy (±3° in the 1 mA–5 mA low-current region) and 0.1° resolution. The instrument automatically performs phase sequence detection, which is critical for verifying correct motor rotation direction and transformer winding connections. A distinctive hexagon vector diagram with color-coded phase sequence visualization enables technicians to intuitively identify wiring errors directly on the display.

3.3 Power and Energy Parameters

The instrument computes three categories of power:

Active Power (P): 0.001–12000 W, 0.5% reading accuracy at PF=1, resolution 0.1 W

Reactive Power (Q): 0.001–12000 Var, 0.5% reading accuracy at PF=0, resolution 0.1 Var

Apparent Power (S): 0.001–12000 VA, 0.5% reading accuracy, resolution 0.1 VA

Power factor is measured across the full range of −1 to +1 with ±0.03 accuracy and 0.001 resolution, enabling precise assessment of load characteristics — whether capacitive, inductive, or resistive. The instrument features automatic identification of transformer winding types and load nature, reducing setup complexity in the field.

3.4 Frequency Measurement

System frequency is measured over 45–65 Hz with 0.1% reading accuracy and 0.01 Hz resolution, supporting both 50 Hz and 60 Hz grid systems commonly found in international installations.

4. Functional Features and Operational Advantages

4.1 Vector Visualization

The hexagon vector diagram display is a key diagnostic feature. By graphically representing voltage and current phasors in a color-coded hexagonal layout, technicians can rapidly detect reversed phases, incorrect CT polarities, and miswired transformer connections — faults that would otherwise require time-consuming manual calculation.

4.2 Data Logging and Storage

Built-in data storage and review functionality allows field personnel to capture static measurement snapshots for post-inspection analysis and documentation. Static data save capability supports compliance reporting and maintenance record-keeping.

4.3 Power Supply and Portability

Powered by a rechargeable lithium battery with over 20 hours of continuous standby, the SMG3000 eliminates dependency on external power sources during extended site surveys. The touch-screen TFT color interface further streamlines operation in confined or elevated working environments.

5. Technical Performance Summary

6. Typical Field Applications

The SMG3000 serves a broad spectrum of power engineering applications:

Transformer Wiring Verification: Confirming correct polarity and phase relationships in newly installed or retrofitted distribution transformers

Phase Sequence Detection: Validating three-phase motor installations to prevent reverse rotation damage

Power Factor Audits: Assessing facility power quality to support power factor correction design

Load Balancing Analysis: Identifying phase current imbalance in three-phase four-wire distribution panels

Energy Meter Calibration: Field verification of active and reactive energy metering installations

7. Conclusion

The SMG3000 Three-Phase Meter consolidates ten categories of electrical measurement into a single battery-operated handheld instrument, making it a versatile tool for power distribution maintenance, commissioning, and diagnostic work. Its combination of vector visualization, four-channel current measurement, automatic load-type identification, and extended battery life addresses the practical needs of field technicians working across industrial, commercial, and utility power systems.

For technical personnel responsible for power system reliability, the SMG3000 provides a balanced combination of measurement accuracy, functional breadth, and operational convenience — characteristics essential for efficient on-site power analysis.
