ZXDN‑3561 Modern Grid Analysis: The Portable Three-Phase Power Quality Analyzer

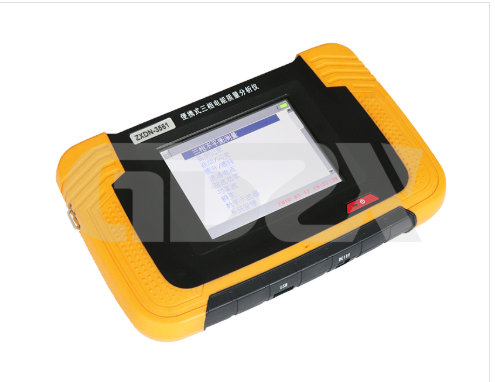

In modern electrical networks, power quality (PQ) is no longer a secondary concern—it directly affects equipment lifespan, process continuity, and energy efficiency. For utility engineers, facility maintenance teams, and commissioning technicians, having a reliable, field-ready instrument that captures both steady-state and transient phenomena is essential. The ZXDN-3561 portable threephase power quality analyzer exemplifies the current generation of handheld PQ tools that combine wide parametric coverage, deep harmonic analysis, and long-term data logging in a single rugged package.

This article reviews its core technical capabilities and discusses practical applications from the perspective of a power system diagnostician.

1. Comprehensive Electrical Parameter Acquisition

At the foundation, the analyzer measures true RMS values of threephase and neutral voltages (up to 700 V direct input) and currents via interchangeable sensors (1 A to 3000 A). Frequency is tracked over 40–70 Hz, covering nominal 50/60 Hz grids with offnominal conditions. Beyond basic values, it displays crest factors, waveform graphs, and trend charts—useful for identifying waveform distortion or drifting RMS levels over hours or days.

Technical note: The voltage input impedance is 1 MΩ || 20 pF, ensuring minimal loading on potential transformers (PTs) or direct mains connections. The current inputs are indirect (clamp or Rogowski coils), which allows safe, nonintrusive measurement at distribution or transmission levels。

2. Harmonic and Interharmonic Analysis

Harmonic distortion is a primary indicator of nonlinear loads (VFDs, rectifiers, LED drivers). The ZXDN3561 computes voltage and current harmonics up to the 50th order, providing perharmonic magnitude, phase angle, total harmonic distortion (THD), and harmonic content ratios. Additionally, it supports interharmonics from 0.1× to 19.9× the fundamental—critical for diagnosing flickercausing drives or induction motor rotor slot harmonics. Both harmonic and interharmonic results can be visualized as histograms or trend graphs, enabling engineers to track how distortion evolves with load cycles.

For advanced power analysis, the instrument also measures harmonic power (active, reactive, apparent) up to the 30th order, which helps pinpoint which harmonic frequencies contribute most to additional losses or reactive burden.

3. Power, Energy, and ThreePhase Unbalance

The device performs full power calculations for 3phase 4wire and 3wire systems, including apparent, active, reactive power, power factor, and cumulative energy. This is complemented by symmetrical component analysis: positive, negative, and zerosequence voltages and currents, along with unbalance factors. A vector diagram and phaseangle display help quickly identify wiring errors, open phases, or severe load imbalance—common in data centers and large motor installations.

4. Dynamic Events and Flicker

Power quality is not only about steady states. The analyzer captures:

Voltage swells, sags, and interruptions – up to 40 events, with timestamped magnitude and duration.

Inrush currents – records at least 40 inrush events, essential for starting large motors or transformer energization.

Transients – detects impulsive events with durations >20 µs, useful for capacitor switching or lightning surge investigation.

Flicker – computes shortterm (Pₛₜ, 10 min) and longterm (Pₗₜ, 2 h) flicker per IEC 61000415, plus 1minute flicker for rapid assessment.

A dedicated “power wave” function measures rapid changes in active, reactive, and apparent power over userset intervals (1–5 minutes)—ideal for evaluating arc furnaces or rolling mills.

5. Data Logging and Oscilloscope Mode

For longterm compliance monitoring (e.g., EN 50160 or IEEE 519), the analyzer logs all steadystate PQ parameters—voltage/current/frequency, harmonics, power, unbalance, and flicker—with programmable intervals from 3 seconds to 30 minutes. The onboard 128 Mbit FLASH memory stores extensive records, and a USB port allows external Udisk expansion for data offload.

The builtin digital oscilloscope function displays realtime voltage and current waveforms, aiding in visual inspection of phase shifts, noise, or ringing. This is particularly valuable during startup sequences or when troubleshooting intermittent disturbances.

6. Hardware and Usability for Field Work

The instrument is powered by a rechargeable Liion battery (5–6 hours continuous operation) and accepts an external AC100–240 V / DC16.8 V adapter. Its 5.7inch color touchscreen (640×480) offers clear visualization even in bright substation environments. The combination of direct voltage inputs (with <0.5 VA/phase burden) and flexible current sensor ranges makes it adaptable to lowvoltage switchgear, mediumvoltage panels (via PTs), and even highcurrent busbars.

Application Scenarios for Technical Staff

Commissioning: Verify correct phase sequence, PT polarity, and CT ratios before energizing new equipment.

Troubleshooting: Isolate the source of nuisance tripping or overheating by correlating harmonics, unbalance, and transient events.

Energy audits: Quantify reactive power and harmonic losses to size filter banks or capacitor detuning reactors.

Predictive maintenance: Trend harmonic and flicker levels over weeks to detect degrading filter capacitors or loose connections.

Compliance testing: Generate reports for utility interconnection agreements or internal power quality standards.

Conclusion

The ZXDN3561 bridges the gap between a simple power meter and a fullfeatured PQ analyzer. Its broad measurement suite—from 50th harmonics to microsecond transients, and from longterm logging to oscilloscope viewing—equips electrical engineers with a single tool for both routine checks and deep forensic analysis. For those working in generation, transmission, distribution, or industrial plants, understanding its capabilities is the first step toward proactive grid management and reduced downtime.

Final remark: Always select the appropriate current sensor range and ensure the direct voltage input does not exceed 700 V RMS to avoid damaging the frontend circuitry. When logging over extended periods, use the external power adapter to preserve battery for portable spot measurements.
