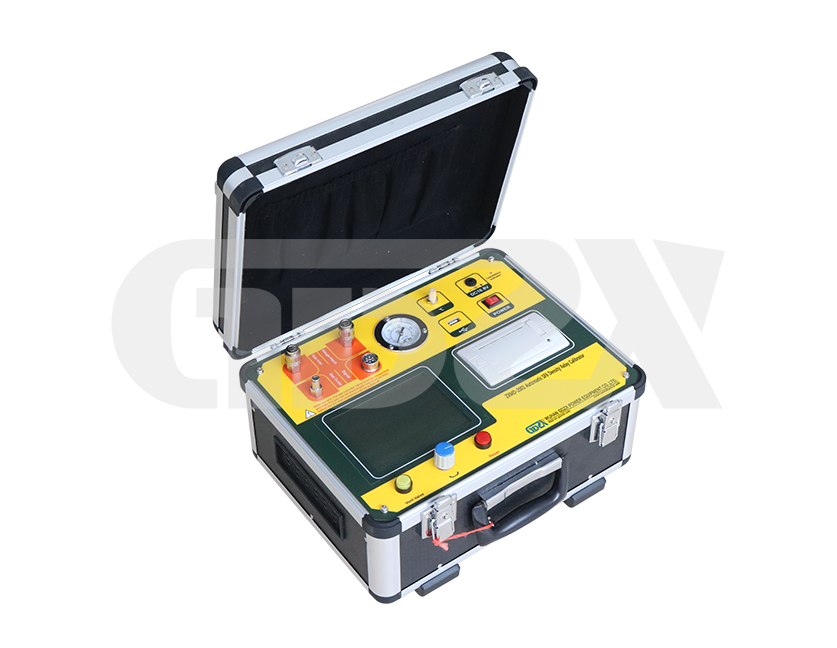

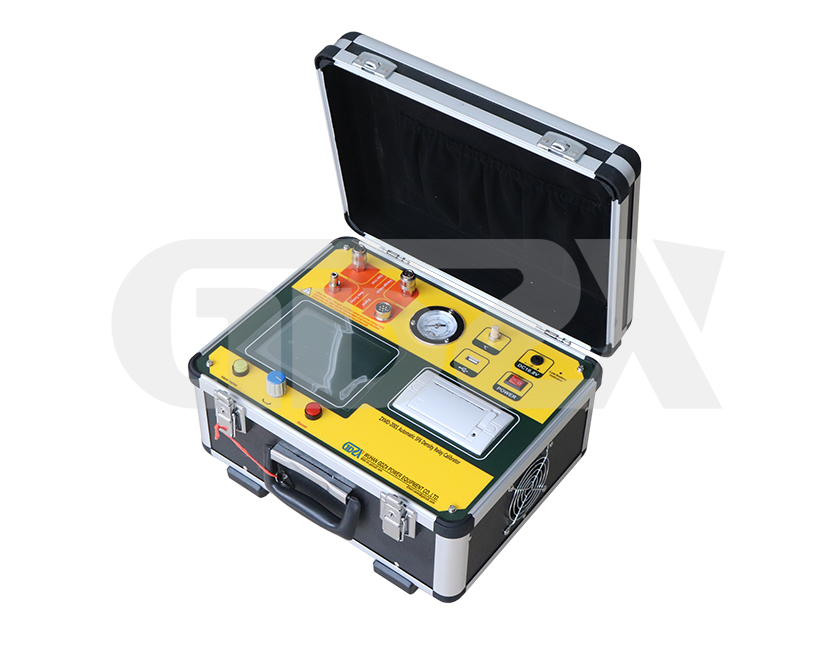

ZXMD-2001 Full Automatic SF6 Density Relay Calibrator

Automatic SF6 density relay calibrator is an intelligent SF6 density relay calibrator. The instrument adopts high-precision pressure sensor and high-speed A/D converter, combined with 32-bit high-performance microprocessor, which can verify the performance of various SF6 density relays, accurately measure the pressure value at the current temperature when the signal acts, automatically complete the conversion of standard pressure at any ambient temperature to 20 ℃, and can print and store the test data in real time for reference and automatic identification Don't test for faults in the process. The product is easy to carry,easy to operate, high accuracy, strong stability and good reliability, which embodies the characteristics of "intelligent" instrument.

Technical indicators

Power: AC220V、50Hz

Power consumption: 50W

Instrument accuracy: 0.2 Class

Pressure resolution: 0.001MPa

Pressure calibration range: 0~1MPa

Temperature resolution: 0.1°C

Environmental scope: -20℃~80℃

Ambient humidity: £90%RH

Communication mode: USB 2.0

Calibration object: single alarm, single latch, single alarm and single latch, single alarm and double latch

Display mode: 320 × 240 LCD

Operation mode: rotate mouse input

Printer: high speed micro printer

Printing method: English printing

Storage capacity: store 50 sets of test results

Dimensions: host: 365×300×220(mm3)

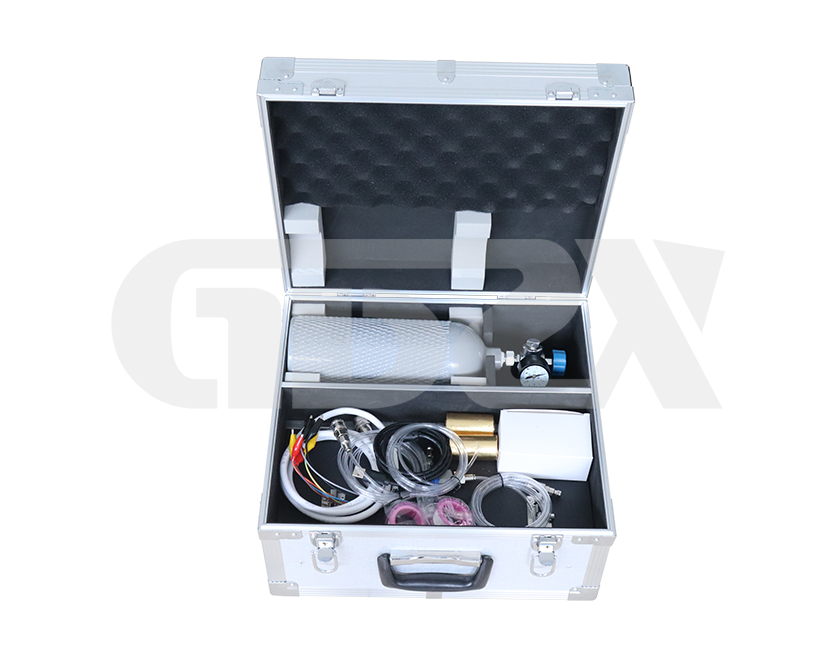

Accessory: 400×370×200(mm3)

SF6 gas density display mode: pressure under the tested environment, equivalent pressure at 20 ℃.
