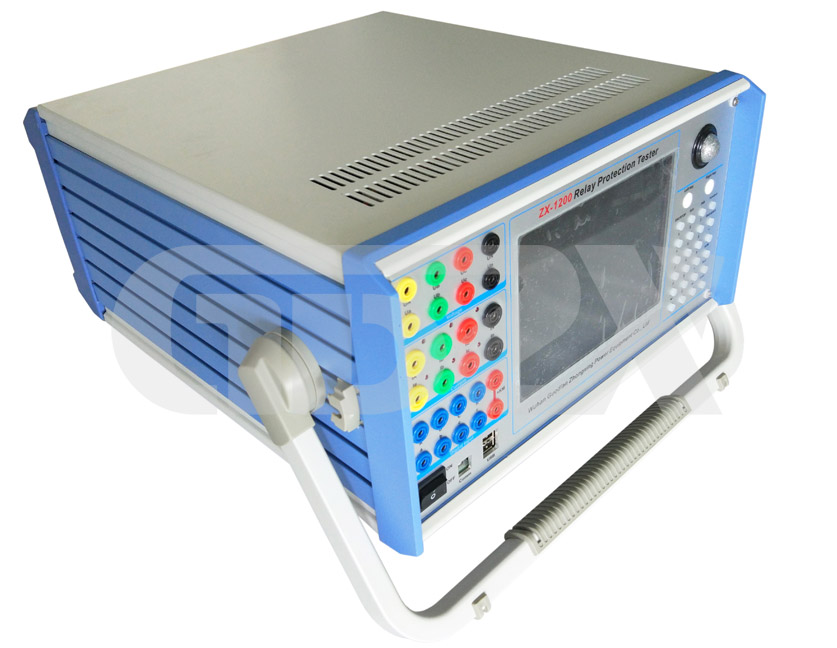

ZX-1200 Microcomputer Relay Protection Tester
The output part of ZX-1200 microcomputer relay protection tester is controlled by DSP, which has the advantages of fast operation, strong real-time digital signal processing ability, wide transmission band and high-resolution D/A conversion. The output waveform has high precision, small distortion and good linearity. It adopts technology and precision components and materials, and carries out specialized structural design, so the device is small in size, light in weight, full in function, easy to carry, can work when starting up, and is very convenient for flow test.
Manual
Video1.Flexible combination of voltage and current output
2.Operation mode
3.A new hi-fi linear power amplifier
4.High performance
5.Powerful software function
6.Independent DC power output
7.Complete interface
8.Perfect self-protection function
| Type | |
| Current channel number | Standard six phase |
| Voltage channel number | Standard six phase |
| AC current output range | 30A / phase or 180A (six phase parallel) |
| DC current output range | 10A DC /phase |
| AC voltage output range | 120V AC /phase |
| DC voltage output range | 160V DC / phase |
AC current output>
The virtual value of each phase output when six phase current output 0～30A output precision 0.1 grade>
The virtual value of each phase output when three phase current output 0～60A >
The virtual value of six phase parallel current output 0～180A>
The allowed virtual value when the phase current work long time 10A>
The maximum output power of phase current 450VA>
The maximum output power when six phase parallel current output 1000VA>
The allowed working time when six phase parallel current maximum output 10s>
Frequency range（fundamental wave） 0～1000Hz >
Harmonic order 0～20 >
DC current output>
Current output 0～±10A / phase output precision 0.2 grade>
The maximum load volatage output 20V>
AC voltage output>
The virtual value of phase voltage output 0～120V output precision 0.1 grade>
The virtual value of line voltage output 0～240V>
The output power of phase voltage/ line voltage 80VA / 100VA>
Frequency range（fundamental wave） 0～1000Hz >
Harmonic order 0～20 >
DC voltage output>
The output amplitude of phase voltage 0～±160V output precision 0.2 grade>
The output amplitude of line voltage 0～±320V>
The output power of phase voltage/ line voltage 70VA / 140VA>
Input and output>
8 channels input>
Free contact 1～20mA, 24V>
Electric potential contacts “0”：0 ～ +6V； “1”：+11 V ～ +250 V>
4 channels output DC：220 V／0.2 A；AC：220 V／0.5 A>
Time measurment range>
0.1ms ～ 9999s, measurement accuracy ＜0.1ms>
-
