Home > Products > ZXHQ-B+ CT/PT Analyzer

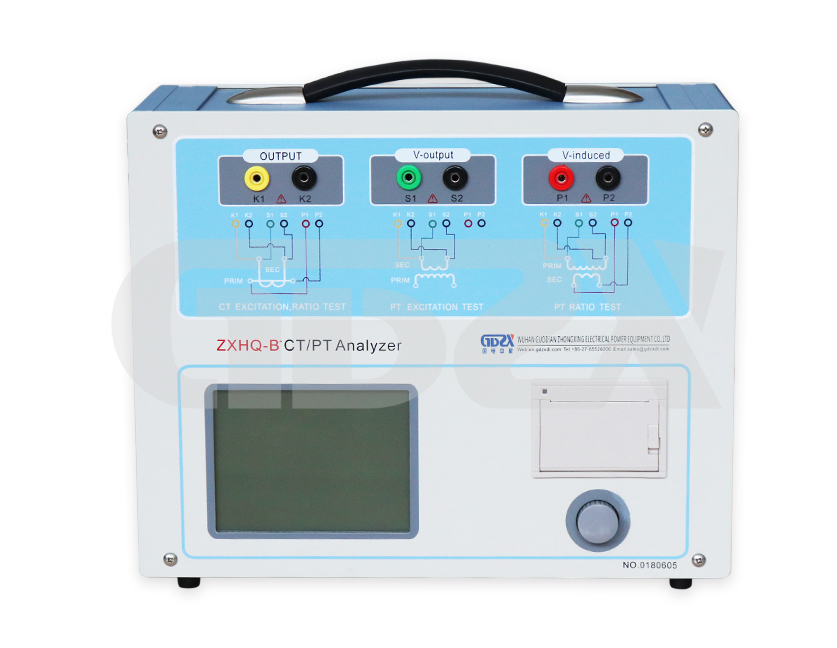

ZXHQ-B+ CT/PT Analyzer

ZXHQ-B+ CT/PT Analyzer is new product created after widely adopt customers’ advices and deep theoretical study. The series of product equipped with high-performance DSP and ARM, advanced manufacturing technology ensured a stable and reliable product performance, full-featured, high degree of automation, high efficiency, leading in the market. They are the professional testing equipments for instrument transformer check in power industry.

Features
Technical indicators

Usage

CT,PT

Output

0~180Vrms,12Arms,36A(peak value)

Voltage measurement accuracy

±0.2%

CT Ratio

Range

1~40000

Accuracy

±0.1%

PT Ratio

Range

1~40000

Accuracy

±0.1%

Phase

Range

±2min

Accuracy

0.5min

DC resistance

Range

0~300Ω

Accuracy

0.2%±2mΩ

Burden

Range

0~1000VA

Accuracy

0.2%±0.02VA

Power supply

AC220V±10%,50Hz

Environmental Conditions

Operating temperature:-10℃~50℃

Humidity :≤90%

Weight and Dimensions

Dimensions: 365 mm×290 mm×153mm,

Weight<10kg

The operation video
Product Certificates

Our products are manufactured in strict accordance with international and national standards and industry regulations. Our products passed the ISO9001 international quality management system and got certificate by the national, provincial and municipal electric research institutes, metrology centers and power authority departments. We also obtained license for manufacturing Measuring insturments, fully meeting GB / T19001-2008 quality management system requirements, GB / T24001-2004 environmental management system requirements, GB / T28001-2011 occupational health and safety management system requirements.
